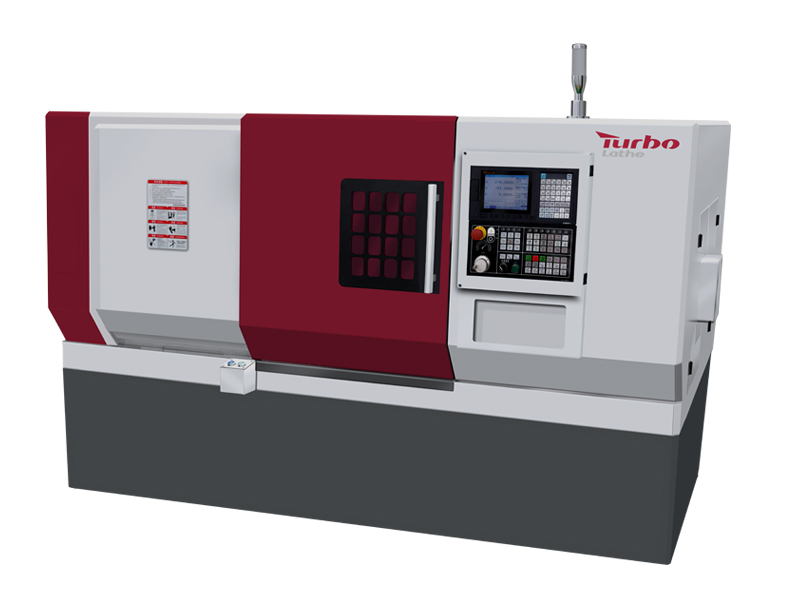

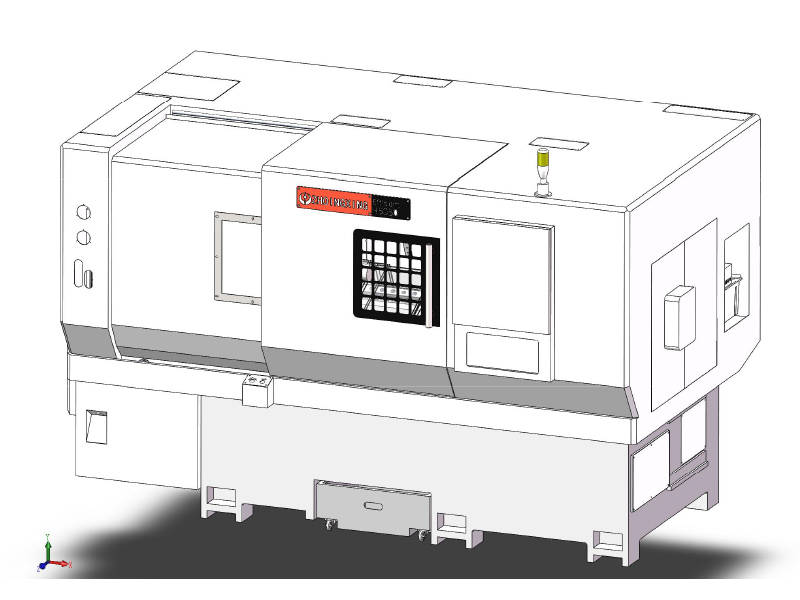

H5050 Slant Bed CNC Lathe

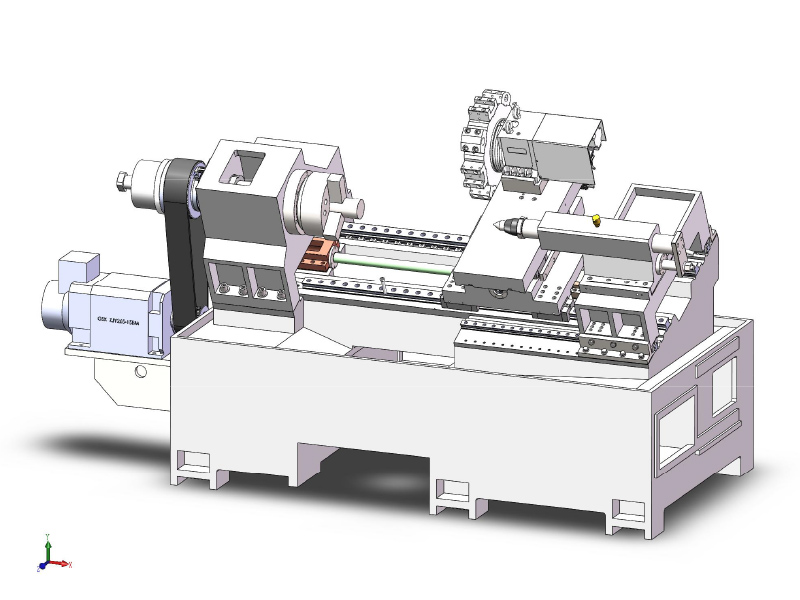

1. 30 degree inclined bed CNC lathe, the inclined bed structure not only makes the machine tool machining center more stable, but also provides the operator with a more convenient operating perspective.

2. H5050 slant bed CNC lathe is equipped with high precision Taiwan Hiwin/PMI linear guideway, Taiwan linear guideway has the characteristics of high precision, good stability, strong load capacity, etc., so as to ensure the machining precision and surface flatness of the workpiece, and provide Japan brand guideway THK optional.

3. Adopting domestic A2-8 high rigidity spindle with 10” hollow hydraulic chuck, which can go through the bar with diameter less than 70mm, and the highest speed of 2000rpm to meet the machining requirements of most of the workpieces.

4. Strong chip removal ability, customers can choose right side or rear side chip removal According to your production site and processing needs, you can choose the right or rear side chip removal method, saving space and adapting to the layout of the customer's factory.

5. The CNC lathe adopts spiral tension structure, which can effectively reduce vibration and deformation during machining. At the same time, the spiral tensile structure also has good heat dissipation performance, which can effectively reduce the temperature of the machine tool and extend the service life of the machine tool.

Application

● Precision parts

● Mechanical parts

● Hardware parts

● Hand tools

● Medical parts

● Clock & watch parts

● Optical parts

● Auto parts

● Bathroom parts

● Bike accessory

Automatic Parts Feeder

Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.

● Improve production efficiency

● Reduce production cost

● Improve production safety

Bar Catcher

Utilizes compressed air as a power source to achieve the splicing function.

● Realizes continuous machining

● Convenient workpiece handling and storage

Automatic Loading Truss

Gripping mode: gripping, handling, lifting, turning

Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.

Robot

High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.

Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.

Low investment and quick return: one robot can realize single or multi-station loading and unloading.

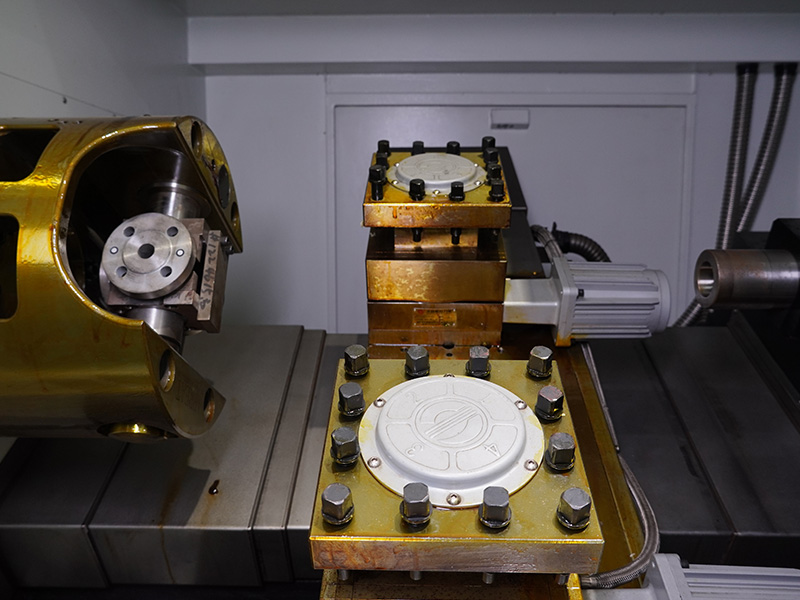

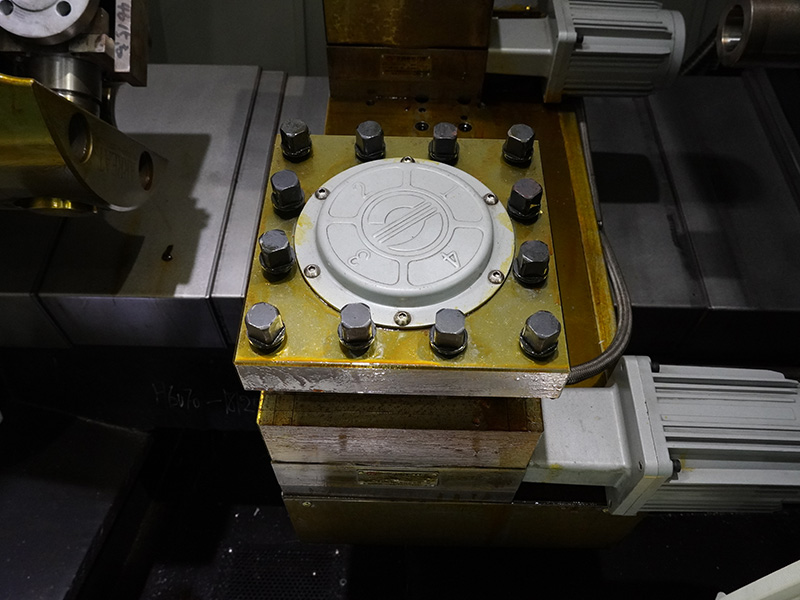

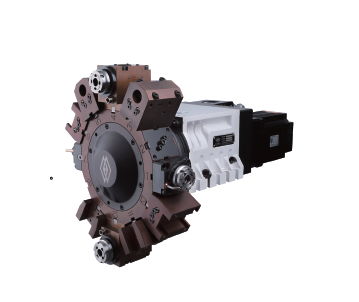

Turret

Automatic lubrication

The automatic lubricator automatically delivers lubricant to the X- and Z-axis guide and screw to ensure smooth operation at all times.

In case of oil shortage, an alarm is issued and the machine stops automatically.
