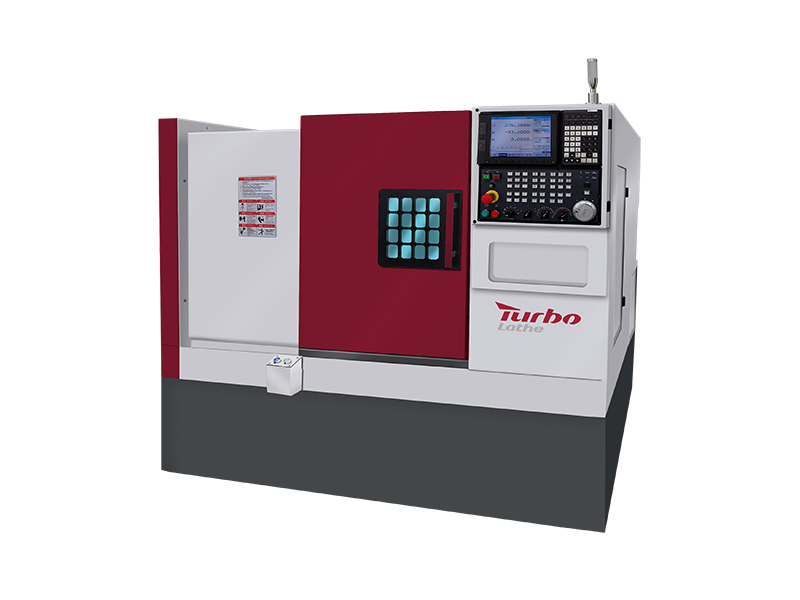

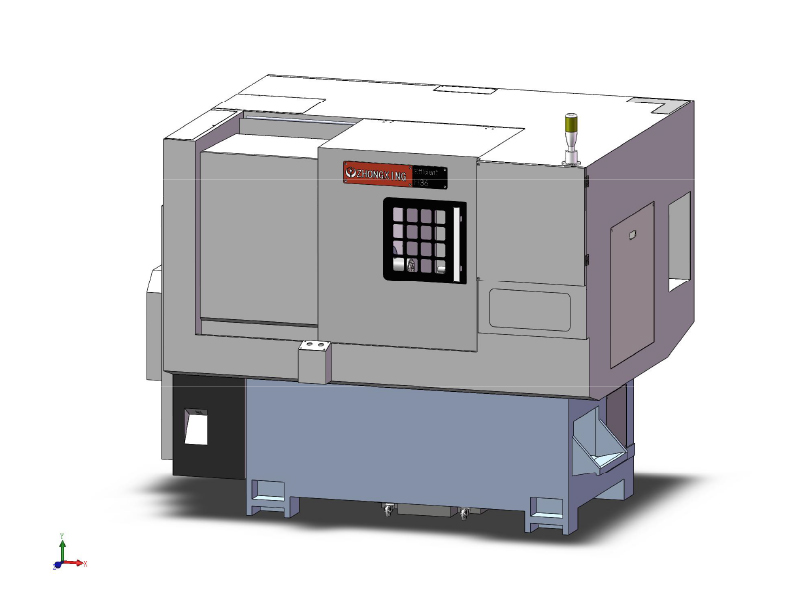

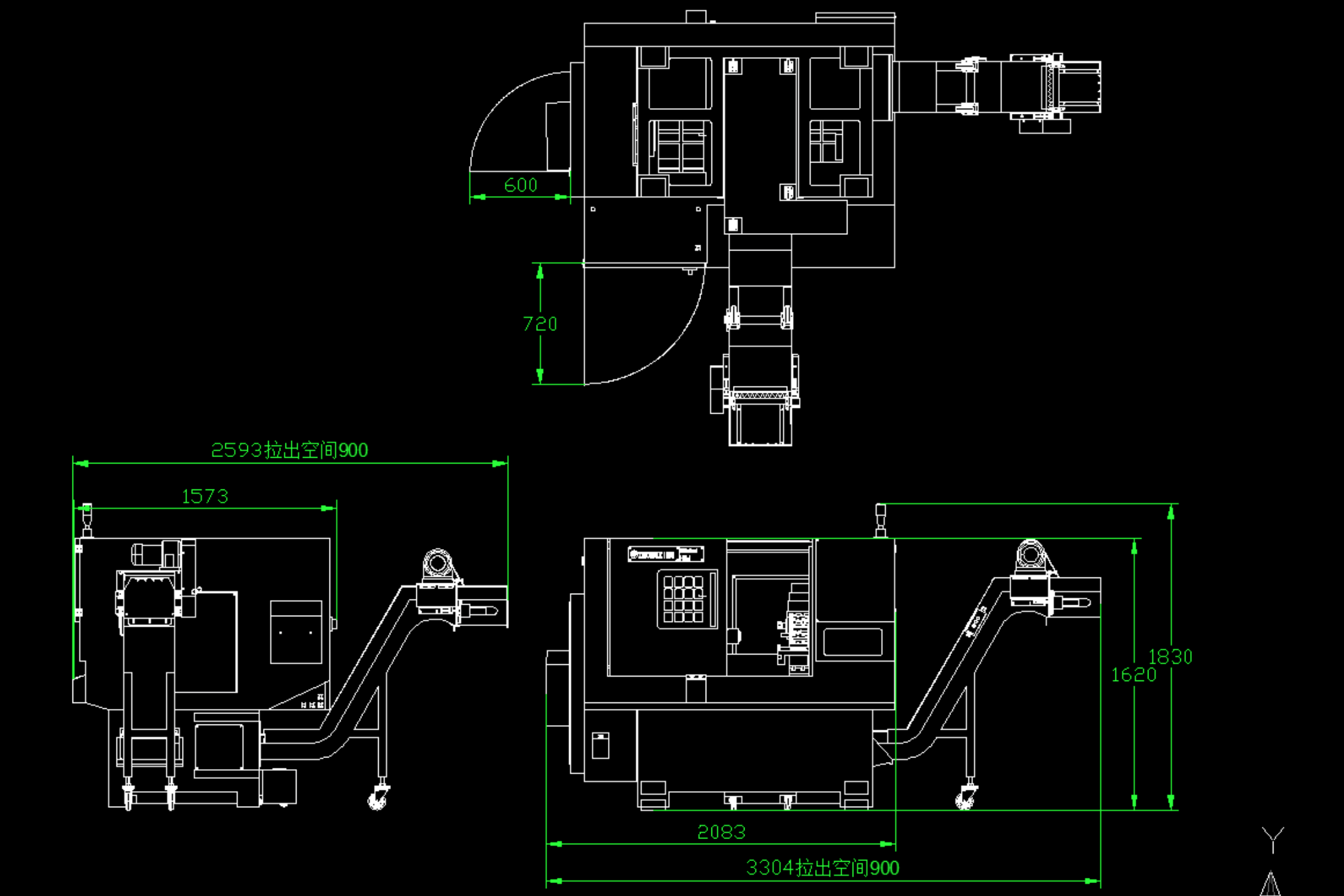

H36 Slant Bed CNC Lathe
1. All structural parts are made of high-quality cast iron and have undergone stress relief treatment, which can effectively absorb vibration and eliminate deformation, greatly extending the service life of all parts of the lathe.

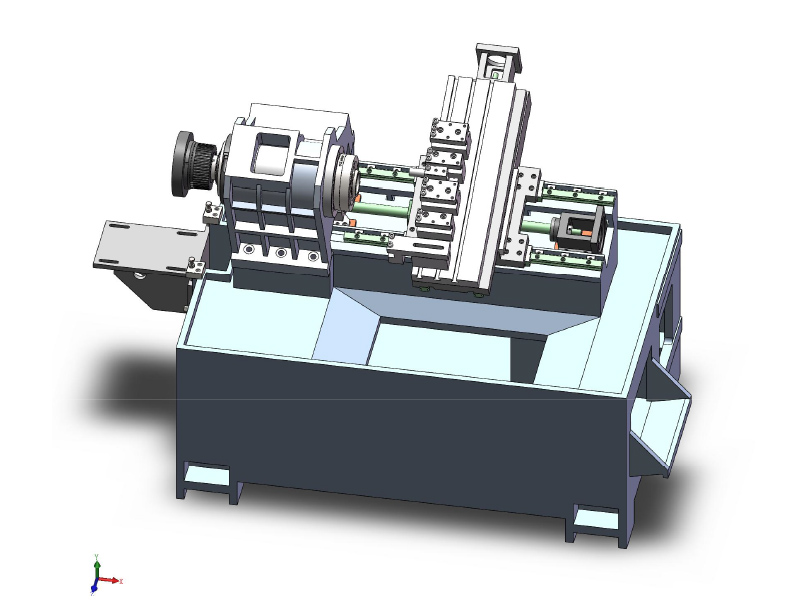

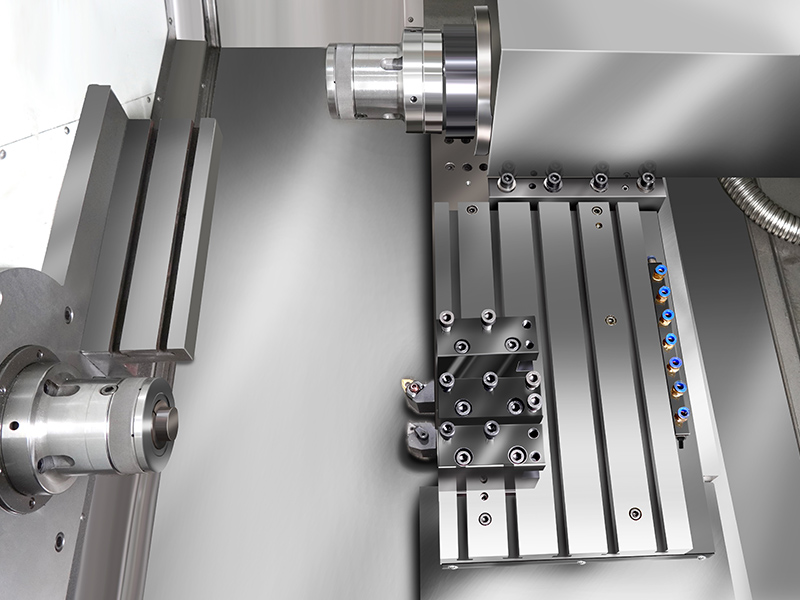

2. The square rails on the X and Z axes are hardened and precision ground for superior quality. The mating surfaces between the slide base and the slide and the slide are coated with wear-resistant media and subsequently precision scraped to ensure accuracy and durability.

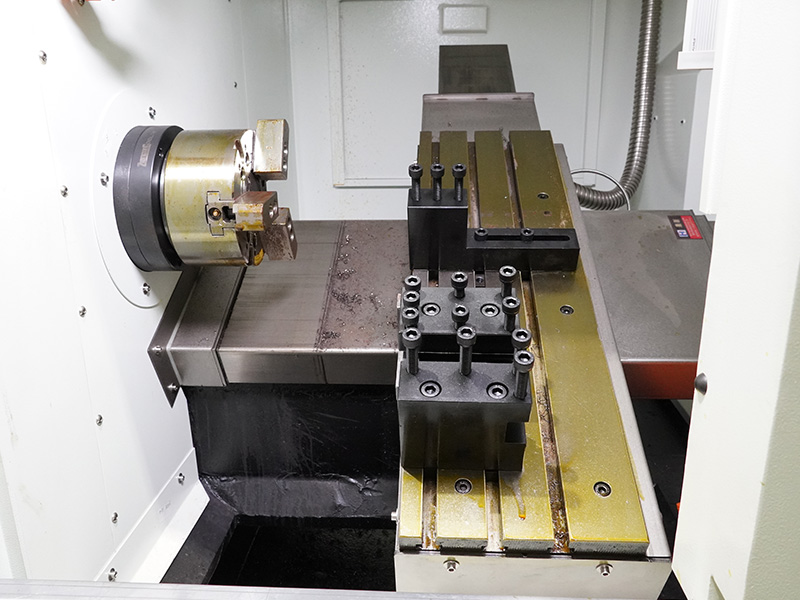

3. The 30° slanting bed structure ensures the carrying of heavy loads while significantly improving space utilization, making the lathe more compact and occupying a smaller area. In addition, the structure is more conducive to chip removal, the lathe adopts semi-guarded design and is equipped with three-sided chip collector, which makes the chip removal process simple and fast.
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi
Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory
Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety
Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage
Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.
Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.
Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet
Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws
Indexing Chuck
| System | Syntec system 7TA |  |
| Syntec system 21TA | ||
| Chuck | 6" solid chuck |  |
| 6" hollow chuck | ||
| 8" solid chuck | ||
| 8" hollow chuck | ||
| Tailstock | Hydraulic tailstock |  |
| Motor | 7.5KW main motor |  |
| 5.5KW Electro-spindle | ||
| 7.5KW Electro-spindle | ||
| Power head | ER20 power head |
|
| ER25 power head | ||
| Hex power head | ||
| ER25 2 power head | ||
| ER25 3 power head | ||
| ER25 side 2 power head | ||
| ER25 side 3 power head | ||
| Ball machine | ||
| Drive component | Hiwin/PMI/THK Ballscrew |  |
| Protection | Auto door |  |
| Auto roof | ||
| Accuracy | Renishaw Tool Presetter |  |
| Automation | Automatic Loading Truss |
|
| Part catcher | ||
| Robot | ||
| Bar Feeder 3-20mm Chain Type ST-20 | ||
| Bar Feeder 5-26mm Automatic SV-26 | ||
| Bar Feeder SQ-20 3-20mm Oil Film | ||
| Bar Feeder SW-29 5-29mm Oil Film | ||
| Bar Feeder SG-36 5-36mm Oil Film | ||
| Cleaner | Chip Conveyor |  |
| Oil Skimmer | ||
| Cooler | 500W Cooling pump |  |
| Heat Exchanger | ||
| Cabinet Air Conditioner |
