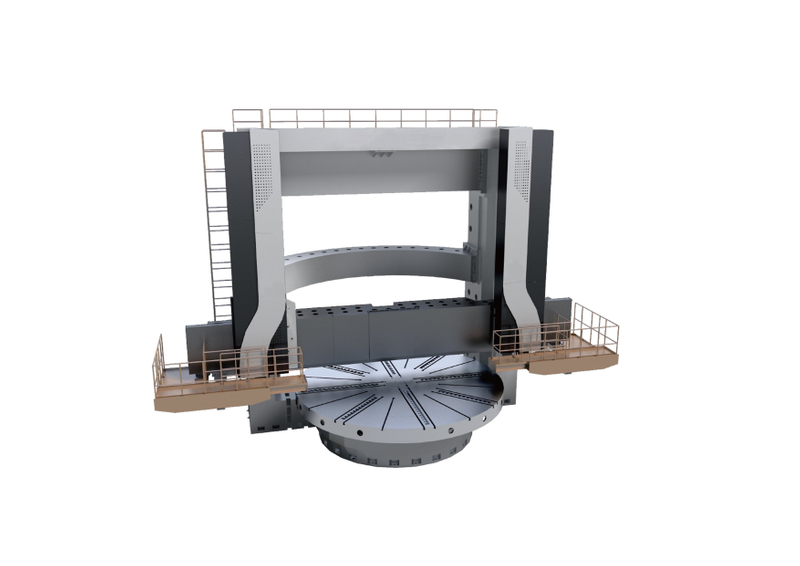

CK5250/CK5263 Vertical CNC Lathe

CK5250/CK5263 Vertical CNC lathe

TECHNICAL DATA

STANDARD

Main specification
ITEM	CK5250	CK5263
Maximum turning diameter mm	5000	6300
Table diameter mm	4500/4700	5700
Maximum workpiece height mm	2000/2500/2800/3000/3150
Maximum workpiece weightkg	40000/50000	50000/60000/80000
Horizontal stroke of right tool holder mm	-50~2750	-50~3550
Vertical travel of right tool holder mm	1250/1400/1600/1800/2000
Horizontal travel of left tool holder mm	-50~2750	-50~3550
Vertical travel of left tool holder mm	1250/1400/1600/1800/2000
Table speed range r/min	0.5~40r/min	0.32~32r/min
Number of table speed step	two-speed stepless
Feed range of tool holder mm/min	left 0.1～500（PLC）right 0.1～1000
Tool holder rapid traverse speed mm/min	left 2000 right 2000
Max torque KN.m	100	200
Max turning force of right tool holder KN	50	63
Max turning force of left tool holder KN	35	50
Stroke of crossbeam mm	1650/2150/2450/2650/2800
Beam lifting speed mm/min	310
Crossbeam lifting motor power KW	15	30
Control system	Siemens/Fanuc/GSK
Main motor power kw form	75KW（AC Servo）	90KW（AC Servo）
Tool bar cross-section size mm (H x W)	50X50	50X50/60X60
Tool holder type	Square ram
Table guideway type	Hydrostatic guide
Cross-section size of ram mm	Square ram 240X240 Square ram 280X280
Dimension of machine(LxW) mm	8800x7400	11000x10000
Positioning accuracy of X and Z	0.025/1000mm
Repeatable positioning accuracy of X and Z	0.010/1000mm
X, Z reverse deviation	0.013/1000mm
Machining accuracy	IT7
Weight(T)	67~80	115~195
