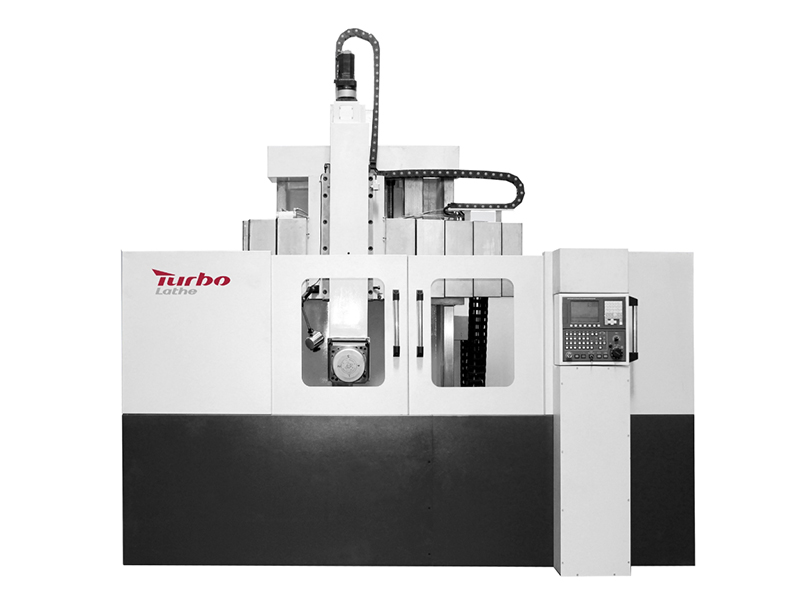

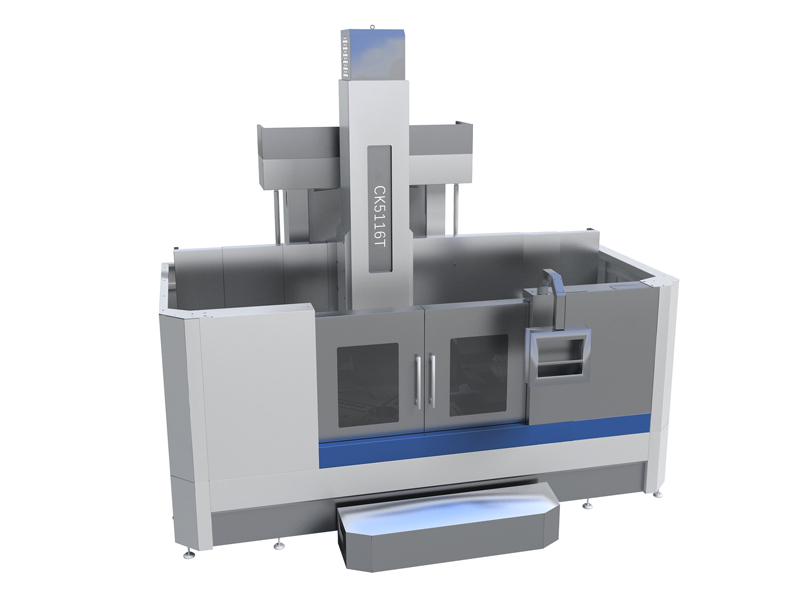

CK5112/CK5116/CK5120 Vertical CNC Lathe
CK5112/CK5116/CK5120 Vertical CNC lathe
| Availability: | |
|---|---|
TECHNICAL DATA
STANDARD
| Main specification | ||||
| ITEM | UNIT | CK5112 | CK5116 | CK5120 |
| Max machining diameter | mm | 1250 | 1600 | 2000 |
| Max rotary diameter | mm | 1270 | 1620 | 2020 |
| Table diameter | mm | 1000 | 1400 | 1800 |
| Max machining height (distance between table top surface and toolholder bottom surface) | mm | 100 | 1000 | 1250 |
| Optional maximum machining height limit | mm | 1250 | 1600 | 1800 |
| Table speed range | r/mm | 6.3~200 | 5-160 | 3.2-100 |
| Number of table speed stages | 4-speed stepless | |||
| Other speed stages are available | 2-speed stepless | |||
| Max table load | t | 3.2 | 5 | 8 |
| Optional load capacity | t | 5 | 8 | 10 |
| Vertical tool holder feed range | mm/min | 0.1-1000 | ||
| Rapid traverse speed of vertical tool holder | mm/min | 2000 | ||
| Horizontal travel of vertical tool holder | mm | -800 | -1050 | -1200 |
| Crossrail travel (displacement of the crossrail on the bed) | mm | Maximum processing height -350 | ||
| Main motor power | Kw | 22 | 30 | 37 |
| Max table torque | KNm | 10.5 | 17.9 | 35.3 |
| Crossbeam lifting speed | mm/min | 660 | 660 | 660 |
| Max cutting force of vertical tool holder | Kn | 20 | 25 | |
| Machine footprint (LXW) | mm | 2930X2150 | 3200X2600 | 3570X2985 |
| With semi-enclosed cover Dimension (LXW) | mm | 4000X3714 | 4700X3805 | 5200X4325 |
| Minimum height | mm | 2900 | 3100 | 3500 |
| Machine weight | t | 8 | 12.6 | 17 |
| Accuracy Class | IT7 | IT7 | IT7 | |
| Positioning accuracy | mm | 0.03/1000 | ||
| Repeatability | mm | 0.015/1000 | ||
| Reverse deviation | mm | 0.01/1000 | ||
| Standard configuration | ||
| No. | Item | Brand |
| 1. | CNC control system | FANUC 0i-TF Plus （5） |
| 2. | Servo motor for X/Z axis | FANUC |
| 3. | Main spindle | Local reputed brand from Dandong Huanghai |
| 4. | All Gear | 40 Cr material |
| 5. | Main motor bearings | KTL brand from Dalian |
| 6. | Other bearings | Haerbing, Wafangdian, luoyang |
| 7. | Ballscrew | Local reputed brand from NJYIGONG |
| 8. | Hydraulic component, Solenoid valve | Local reputed brand from Shenzhen Junlan |
| 9. | ELectrical components | Local reputed brand Tianshui 213/Schneider |
| 10. | Supporting bearing for ballscrew | NSK or INA |
| 11. | Protection cover for crossbeam | Local reputed brand |
| 12. | Reducer/ Gearbox | INCREAING brand |
| 13. | A/C for electric cabinet | Shengyang Sanhe |
| 14. | Casting | HT250 degree |
| 15. | Frequency inverter | Sinee/ Szkewo |
