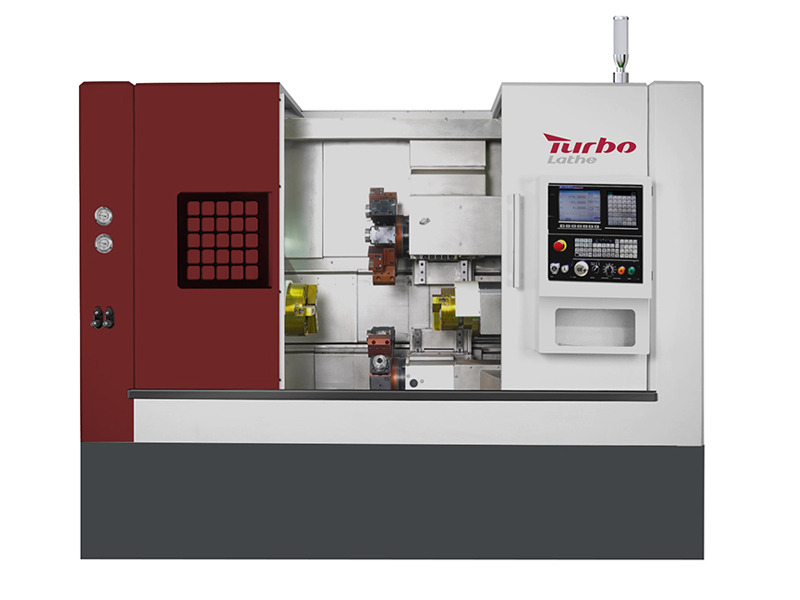

GS42 Double Spindle and Double Spindle CNC Lathe

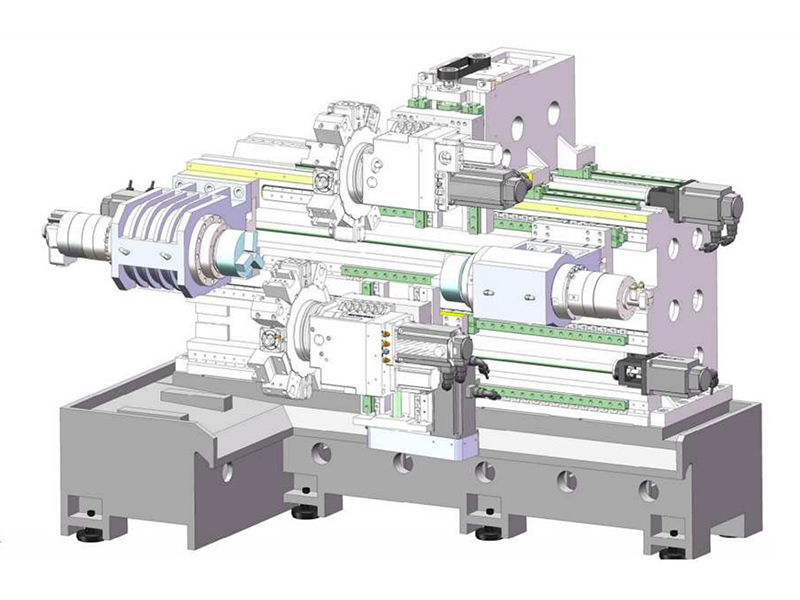

GS42 CNC lathe is a 5-axis linkage, fully closed-loop CNC lathe produced by our factory. It has the excellent characteristics of good overall precision stability, strong rigidity, good thermal stability and good precision retention. The machine tool design has been analyzed by finite element analysis. Its structure is reasonable and the ribs are properly arranged, so it has high enough static and dynamic stiffness, can withstand large cutting torque, and has good precision retention. The main body of the machine tool is made of resin sand castings, and the bed is an integral casting. The machine tool has the characteristics of high rigidity, small thermal deformation, low spindle temperature rise, and small vibration. The main structural components of the machine tool, such as the bed, spindle box, saddle, sub-spindle box and other key parts, are all processed by advanced equipment such as pentahedron machining center. High-precision processing equipment ensures the high processing accuracy and stable quality of machine tool parts, and the technical performance of the machine tool is guaranteed.
1. Double spindle docking, symmetrical up and down, dual turrets processing at the same time, to achieve balanced cutting.
2. High-speed and high-torque electric spindle design, can easily achieve strong cutting.
3. Accurately indexed high-rigidity turret, to ensure the accuracy of processing.
4. The machine appearance design is compact and occupies a small area.
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi
Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory
Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety
Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage
Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.
Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.
Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet
Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws
Indexing Chuck
