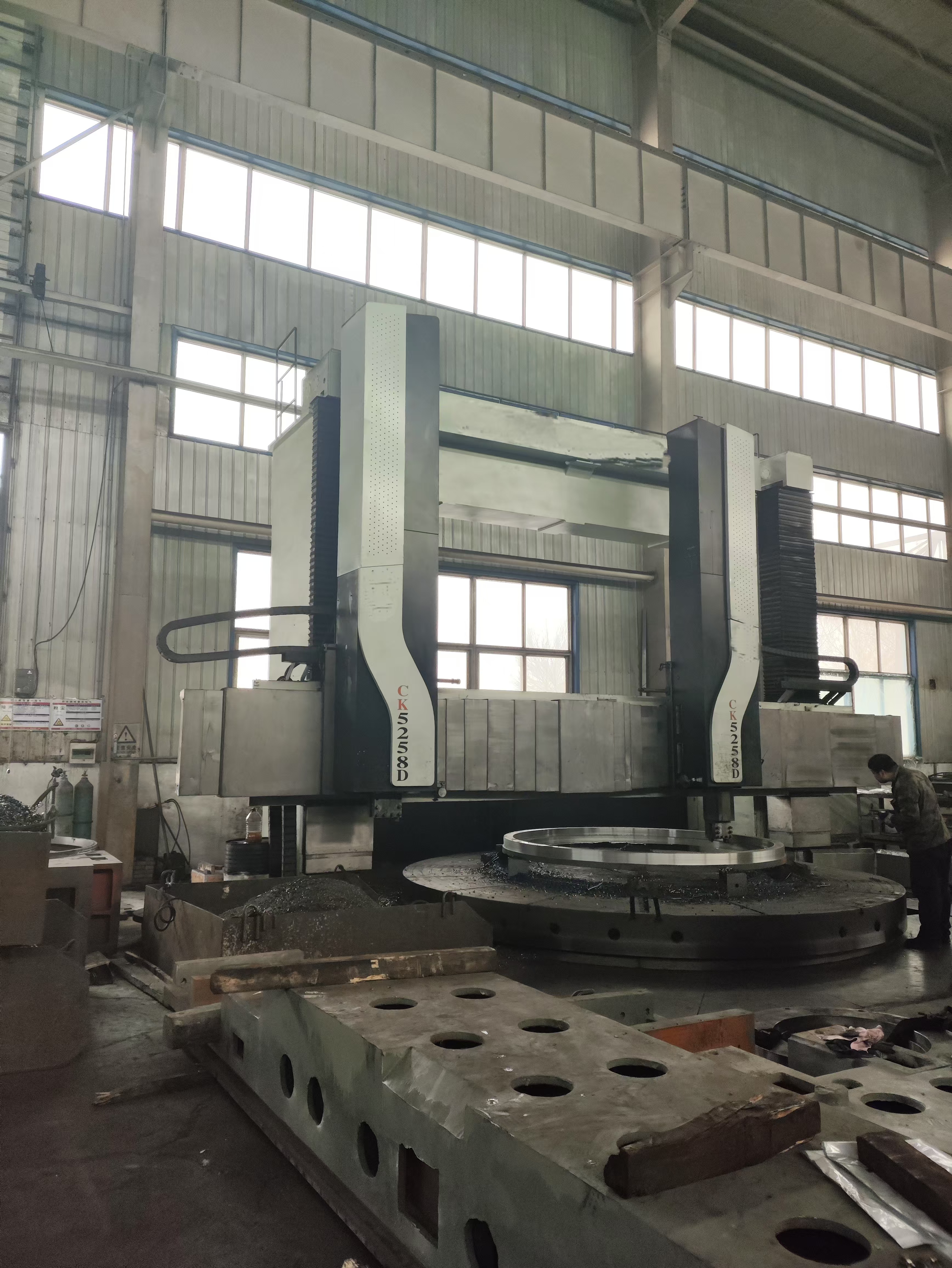

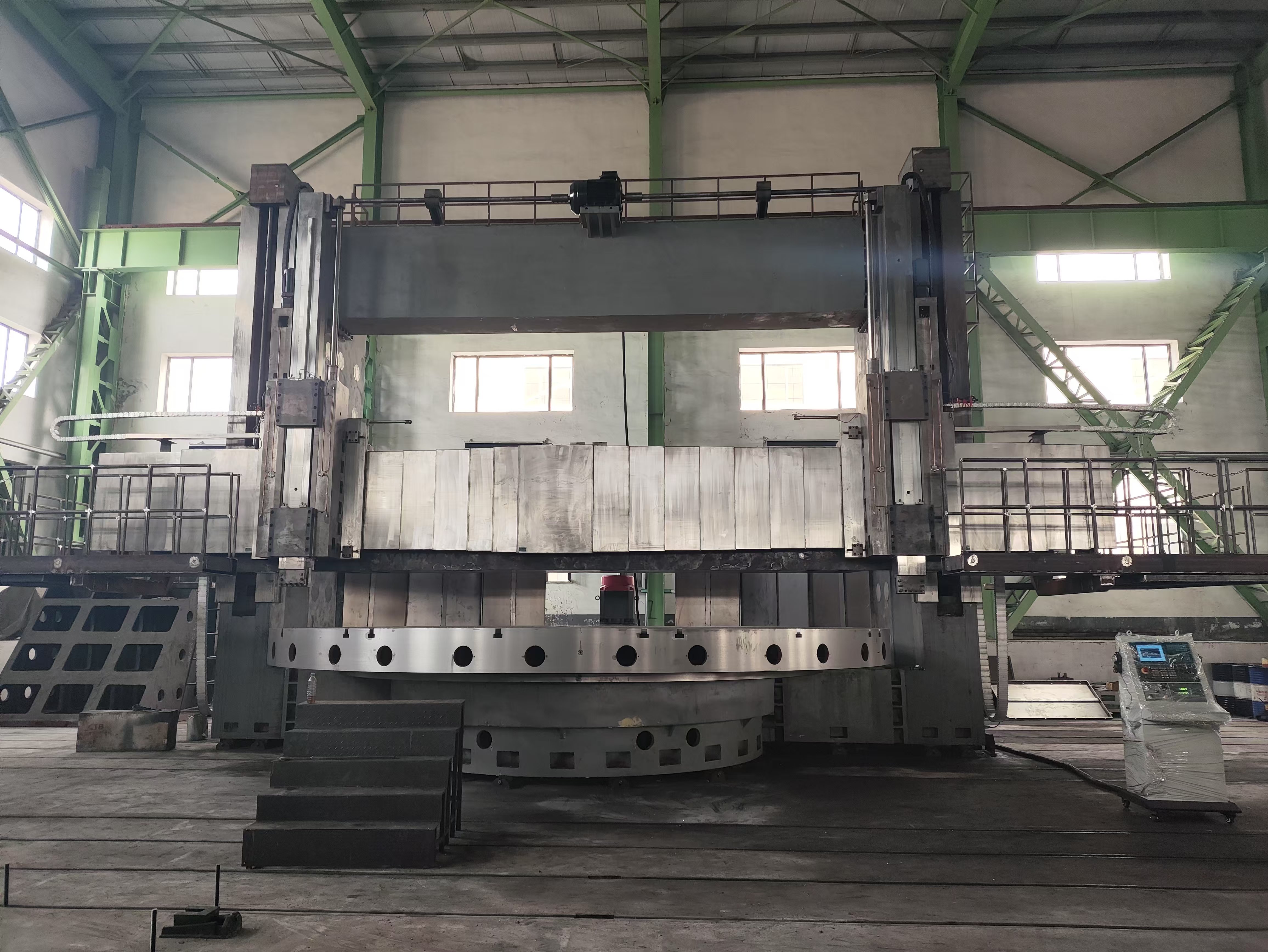

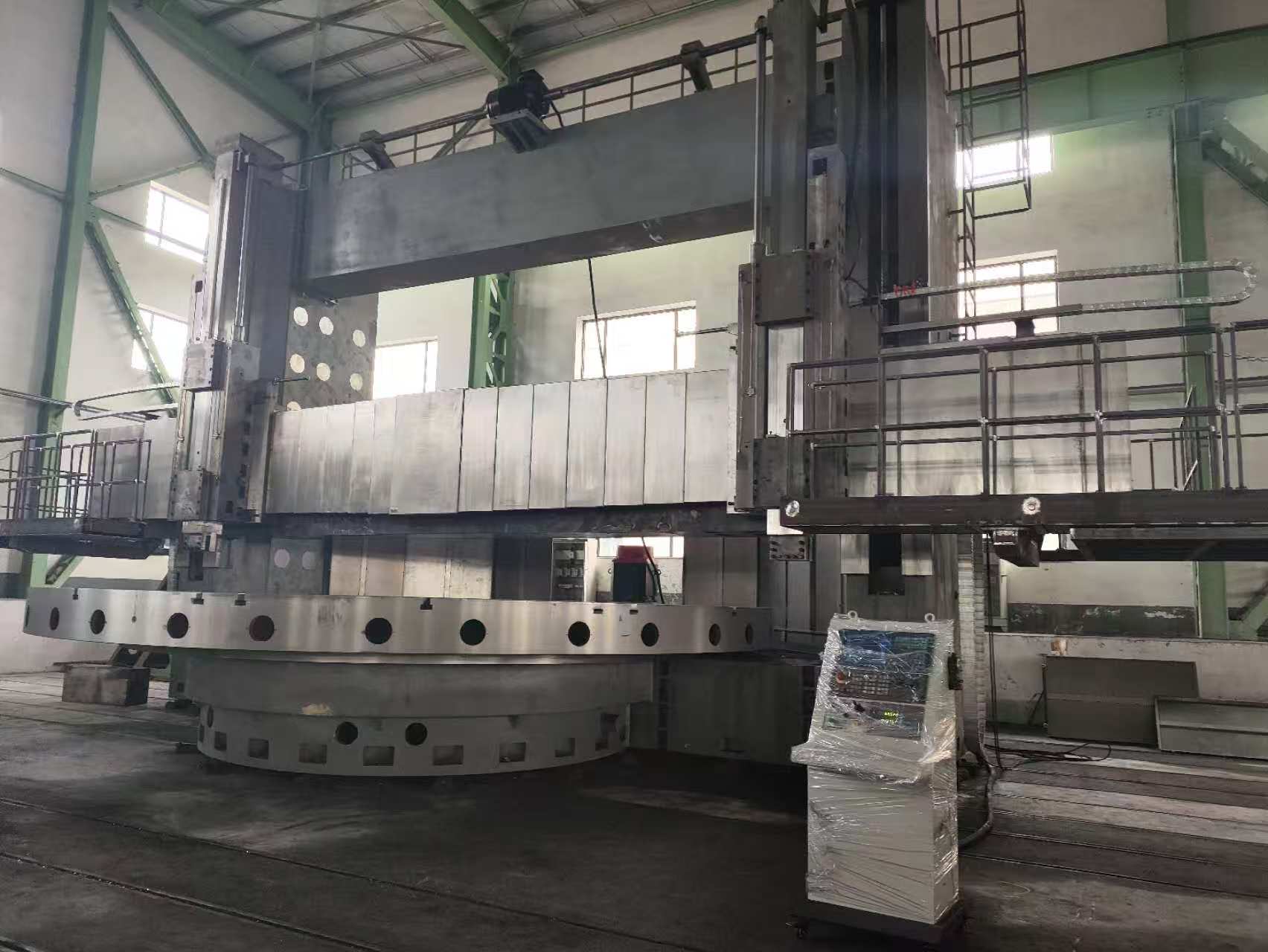

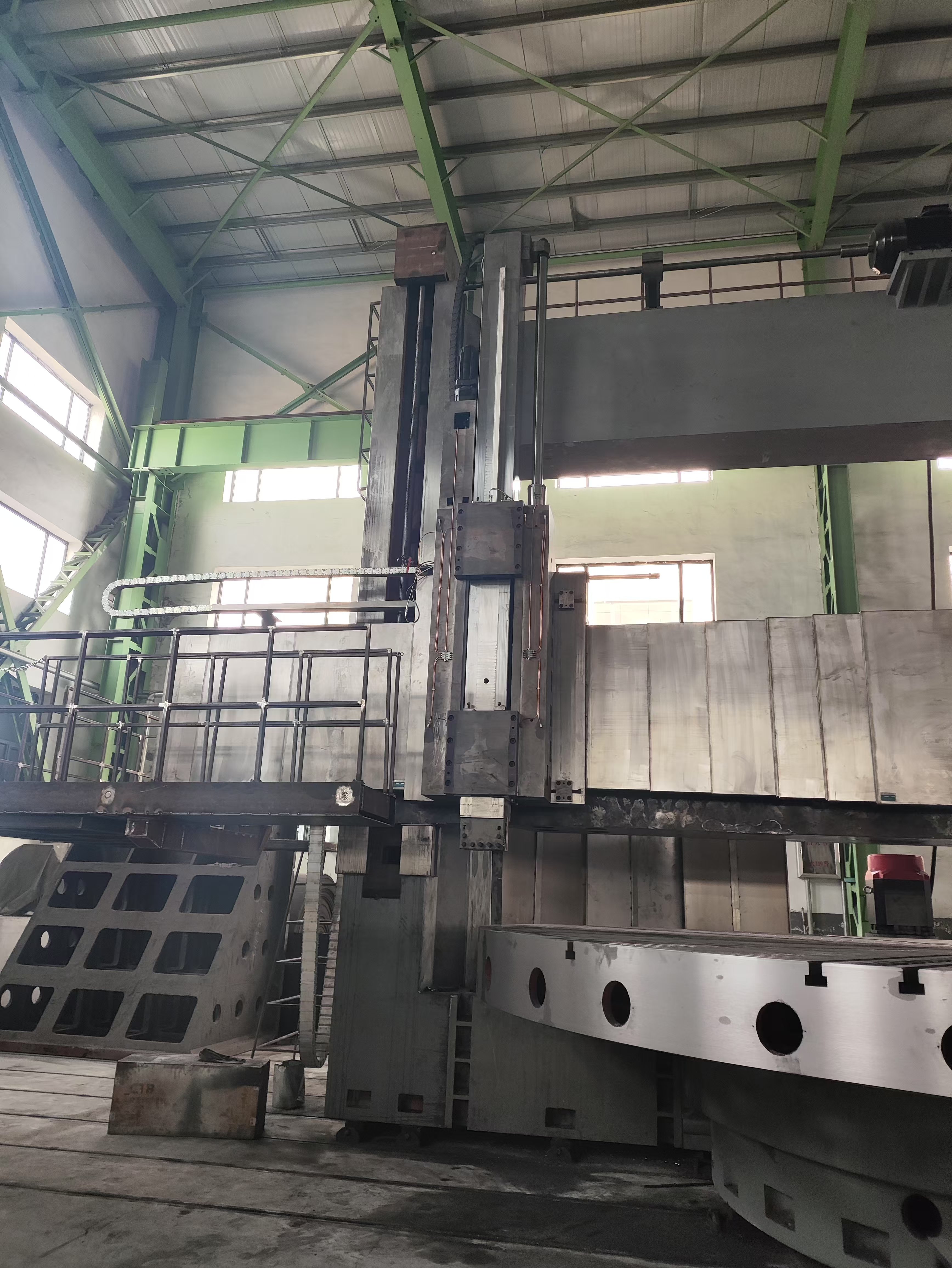

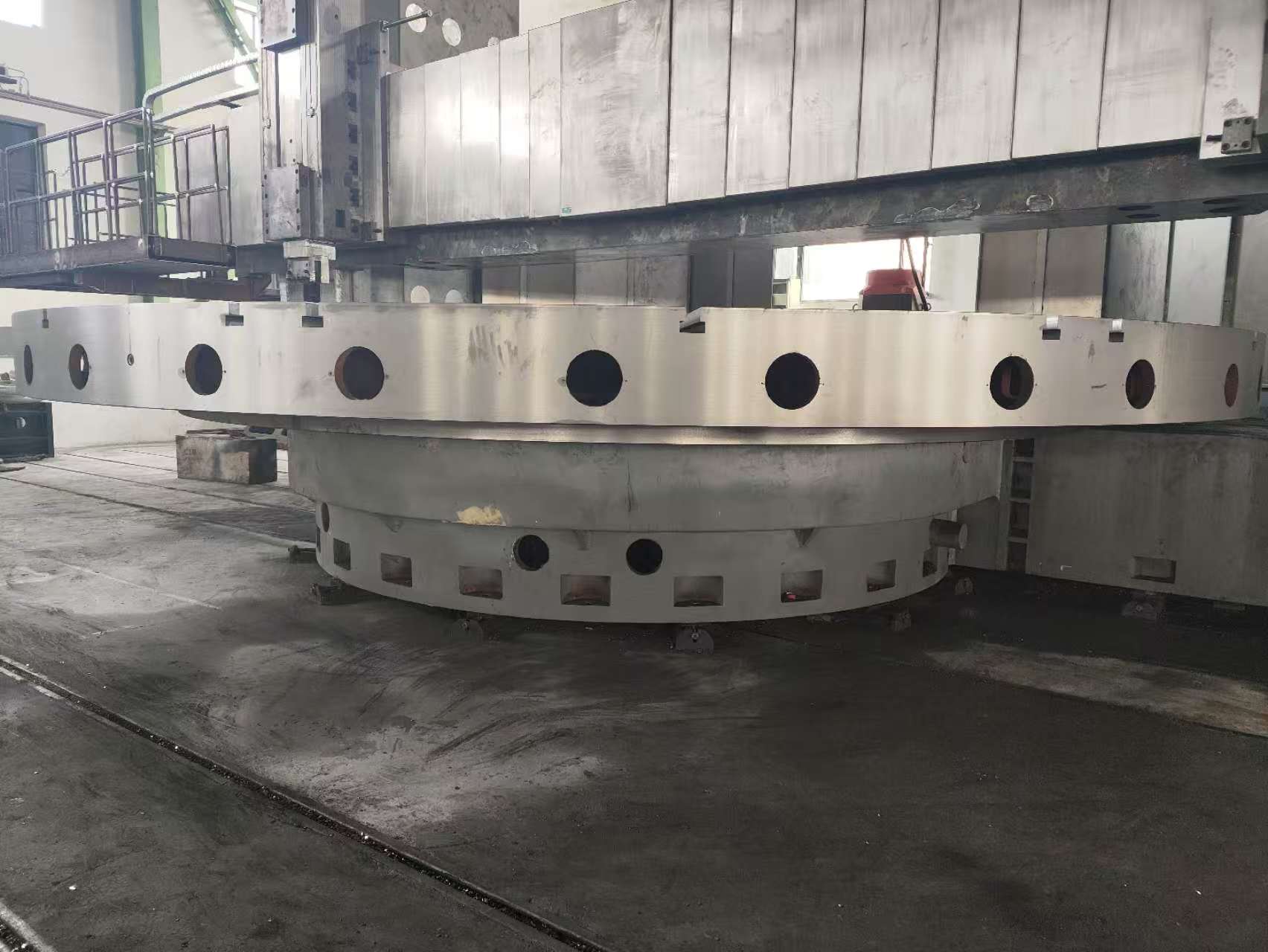

CK5280/CK52100 Vertical CNC Lathe

CK5280/CK52100 Vertical CNC lathe

TECHNICAL DATA

STANDARD

Main specification
ITEM	CK5280	CK52100
Maximum turning diameter mm	8000	10000
Table diameter mm	7100	7100/8000
Maximum workpiece height mm	3000/3150/3500/4000	3000/3150/3500/4000/4500
Maximum workpiece weightkg	80000/100000/125000	80000/100000/125000/150000
Horizontal stroke of right tool holder mm	-50~4400	-50~5400
Vertical travel of right tool holder mm	1600/1800/2000/2200	1600/1800/2000/2200/2500
Horizontal travel of left tool holder mm	-50~4400	-50~5400
Vertical travel of left tool holder mm	1600/1800/2000/2200	1600/1800/2000/2200/2500
Table speed range r/min	0.2~20r/min
Number of table speed step	two-speed stepless
Feed range of tool holder mm/min	left 0.1～500（PLC）right 0.1～1000
Tool holder rapid traverse speed mm/min	left 2000 right 2000
Max torque KN.m	400	600
Max turning force of right tool holder KN	80
Max turning force of left tool holder KN	60
Stroke of crossbeam mm	2650/2800/3150/3650	2250/2400/2750/3250/3750
Beam lifting speed mm/min	310	310
Crossbeam lifting motor power KW	45	55
Control system	Siemens/Fanuc/GSK
Main motor power kw form	132KW（AC Servo）
Tool bar cross-section size mm (H x W)	60X60/70X70	60X60/70X70
Tool holder type	Square ram
Table guideway type	Hydrostatic guide
Cross-section size of ram mm	Square ram 320X320
Dimension of machine(LxW) mm	17500x12000	19600x12000
Positioning accuracy of X and Z	0.025/1000mm
Repeatable positioning accuracy of X and Z	0.010/1000mm
X, Z reverse deviation	0.013/1000mm
Machining accuracy	IT7
Weight(T)	210~350	330~420
