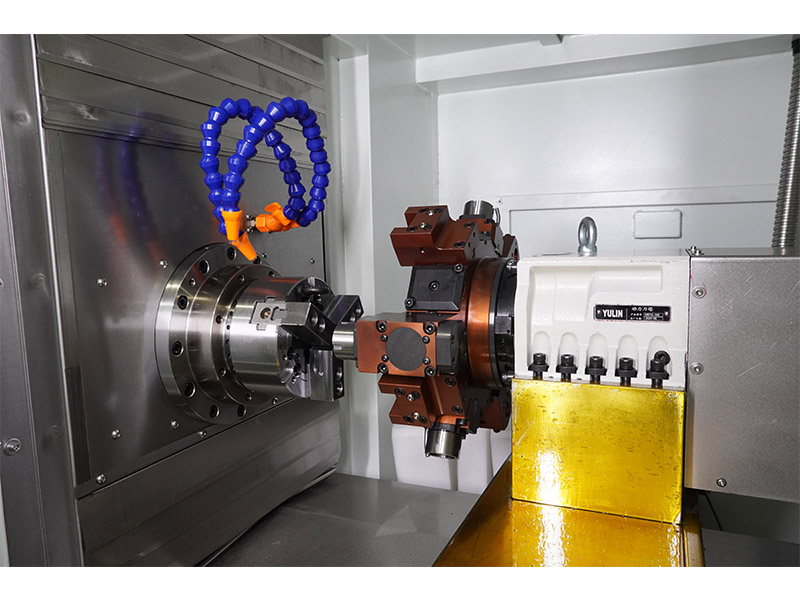

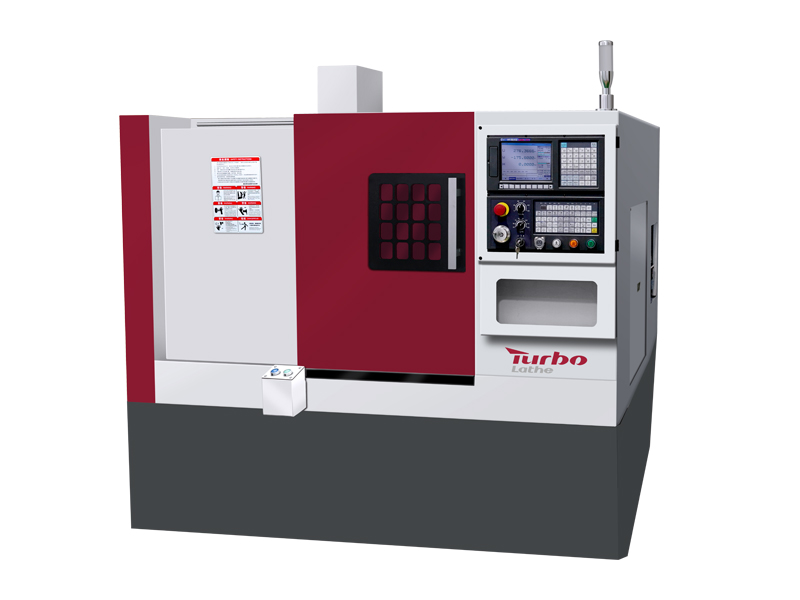

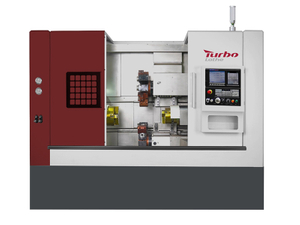

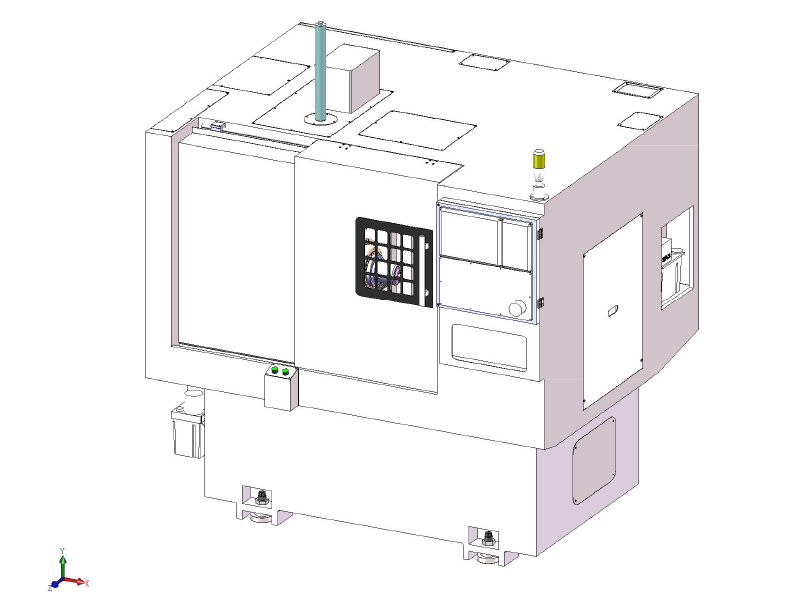

1. Equipped with a power turret, this machine is a multifunctional CNC turning and milling machine tool.
2. Faster speed, reducing processing time and improving user work efficiency.

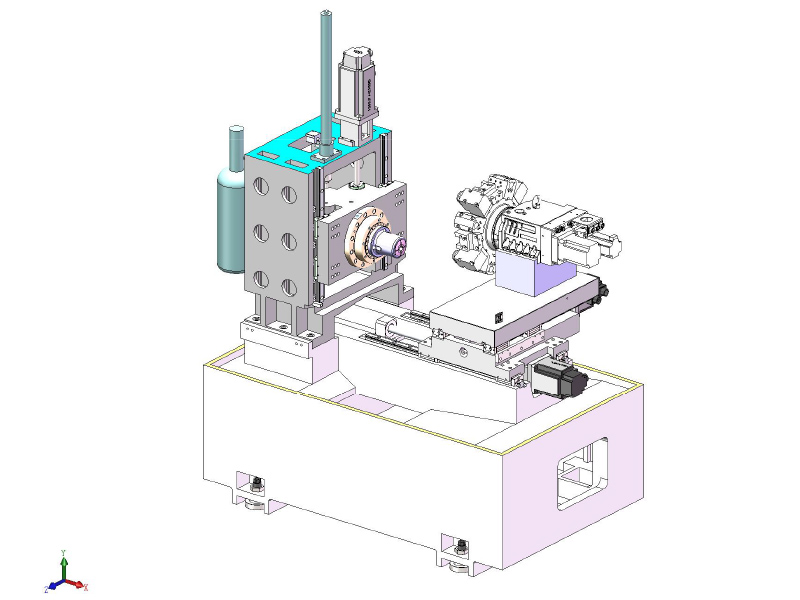

3. The spindle lifting design, the power tool holder is fixed on the carriage, which can achieve higher processing accuracy and stable quality.
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi

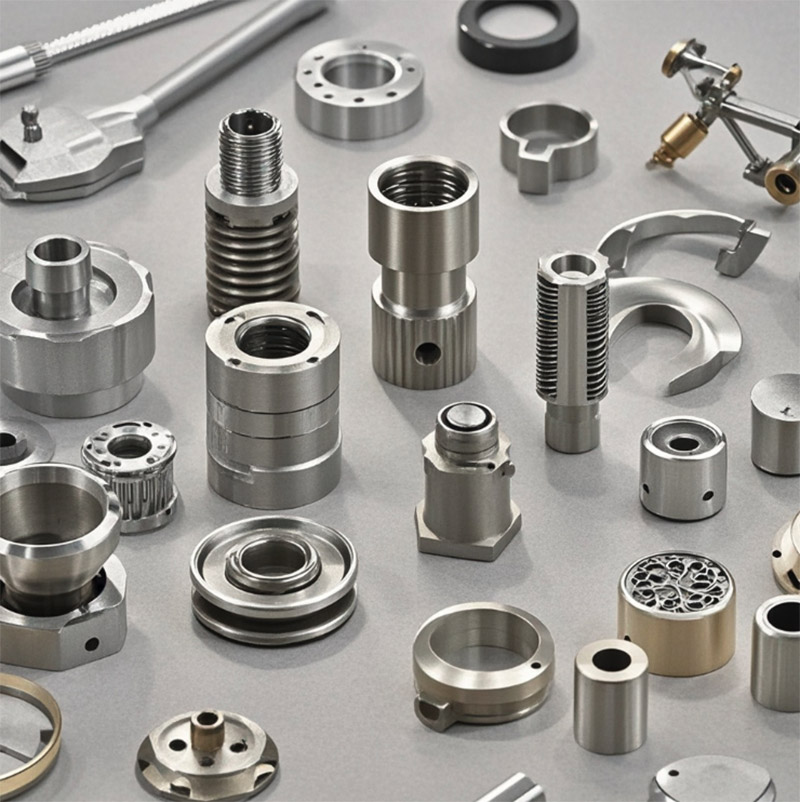

Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory

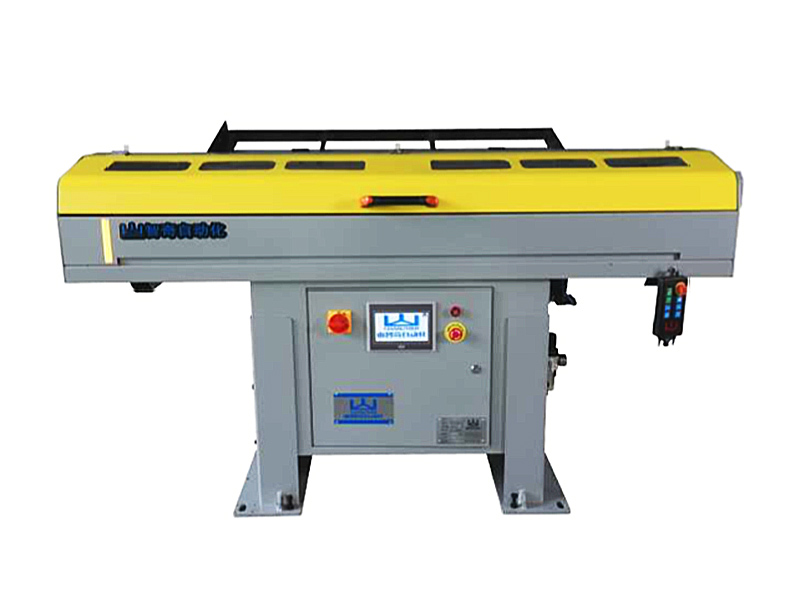

Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety

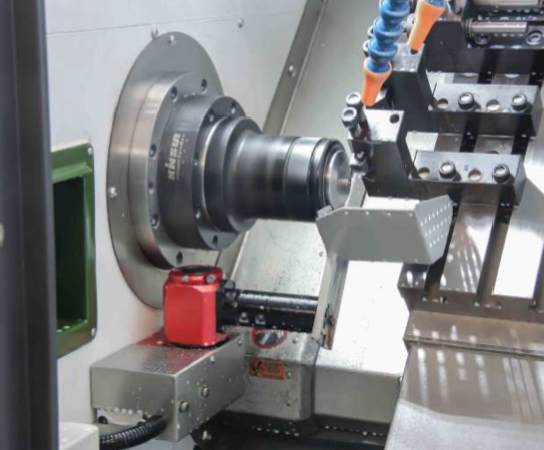

Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage

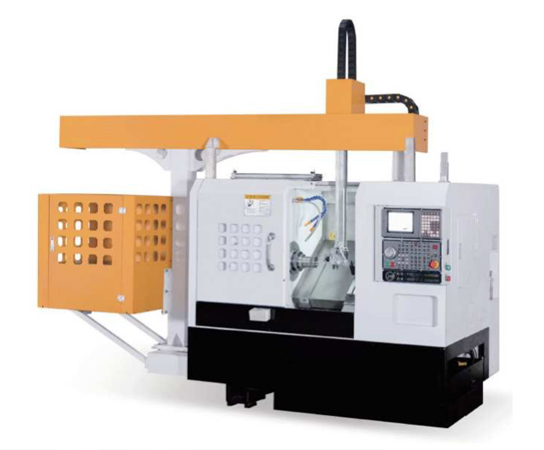

Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.

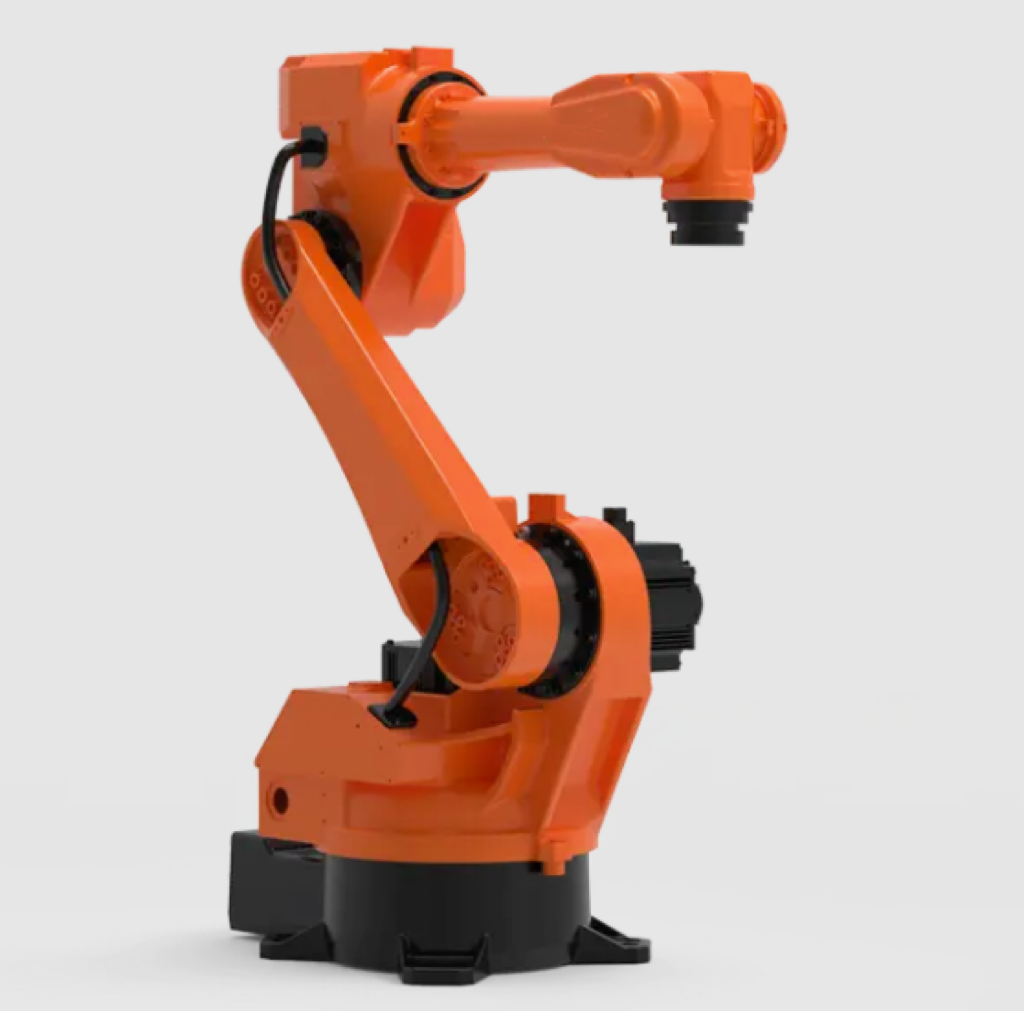

Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.

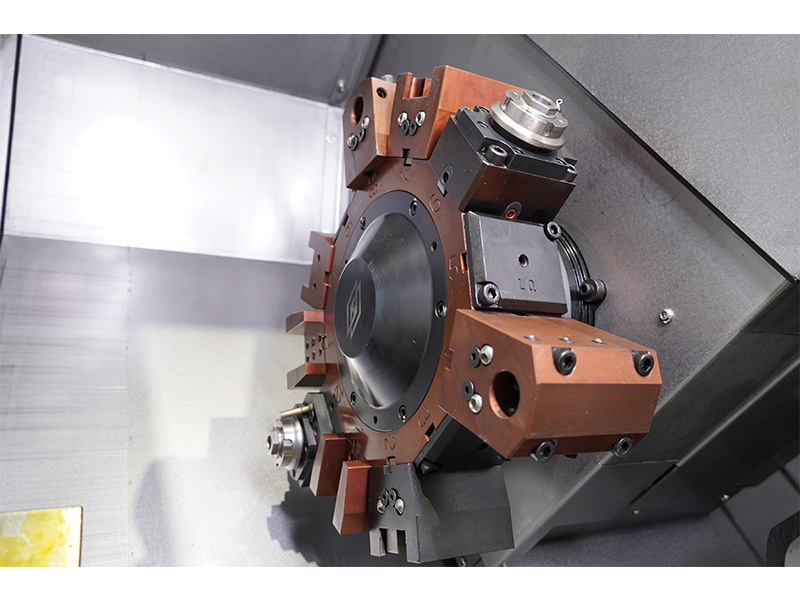

Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet
Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws
Indexing Chuck
