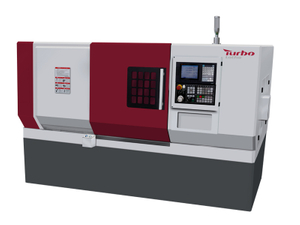

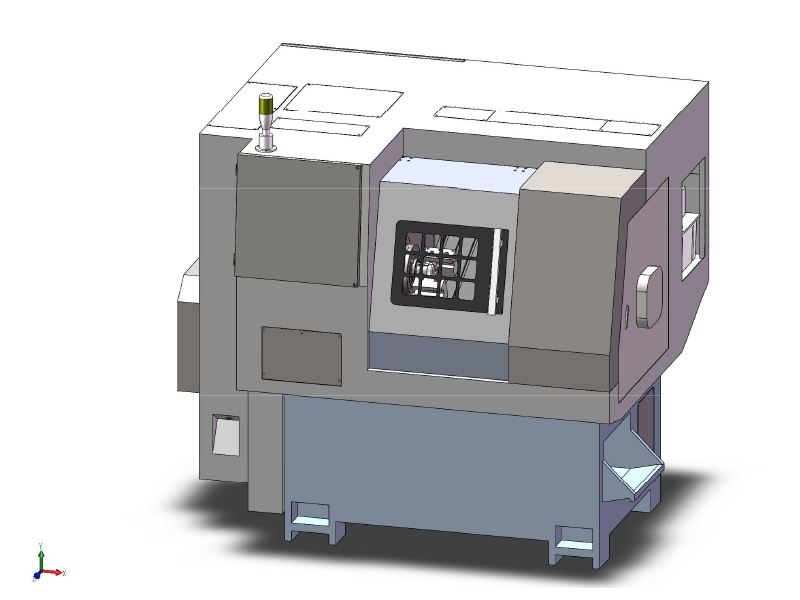

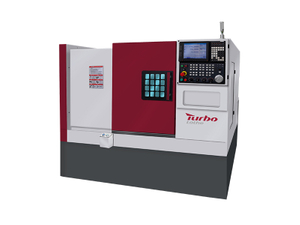

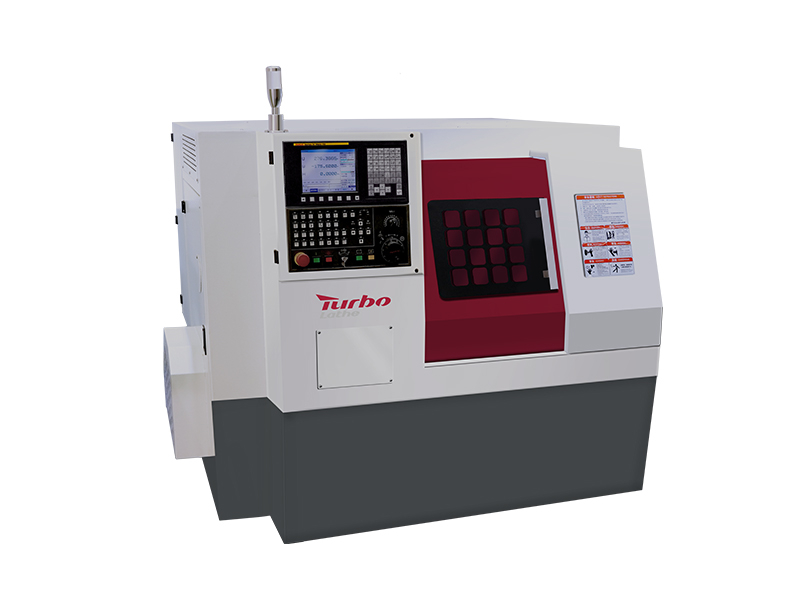

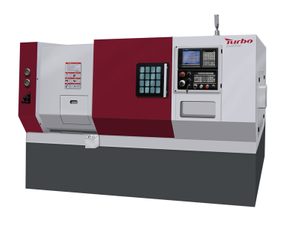

H32 Slant Bed CNC Lathe

1. The machine tool adopts the integrated design of machine, oil and electricity, compact design, reasonable structure, simple operation, convenient maintenance, reasonable process design and flow, high machining precision and stable quality.

2. The guideway adopts Taiwan HIWIN/PMI high-precision linear guideway, with high positioning accuracy, good dynamic performance and fast moving speed up to 25m/min.

3. Adopting row-type tool holder, simple tool arrangement and adjustment, high flexibility, optional power head to realize drilling and milling function, realize milling and turning composite, avoiding the user's secondary clamping, and improving the user's work efficiency.

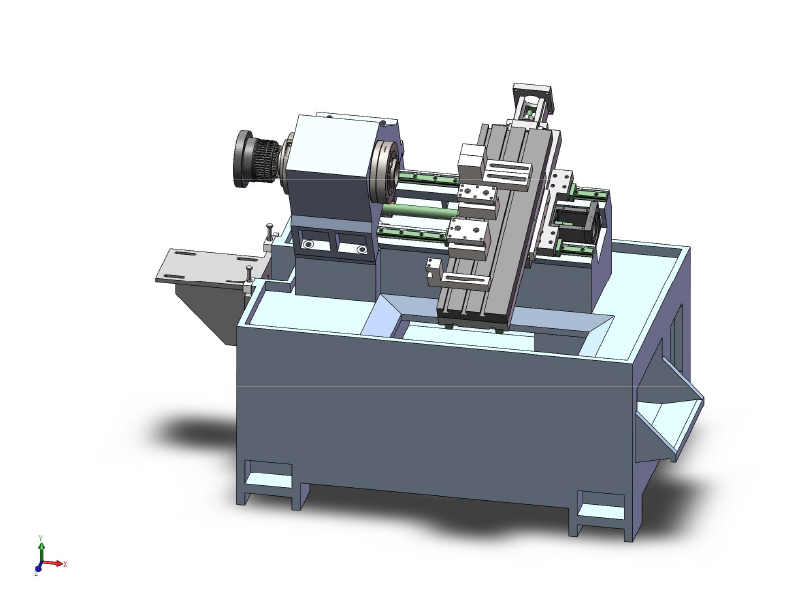

4. the machine adopts high rigidity cast iron structure, the castings are treated by natural aging outdoors, utilizing the change of ambient temperature and humidity to gradually release its internal stress and improve the dimensional stability.

5. automatic chip removal, loading and unloading robot and other devices can be added, thus reducing labor costs.

Application

● Precision parts

● Mechanical parts

● Hardware parts

● Hand tools

● Medical parts

● Clock & watch parts

● Optical parts

● Auto parts

● Bathroom parts

● Bike accessory

Automatic Parts Feeder

Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.

● Improve production efficiency

● Reduce production cost

● Improve production safety

Bar Catcher

Utilizes compressed air as a power source to achieve the splicing function.

● Realizes continuous machining

● Convenient workpiece handling and storage

Automatic Loading Truss

Gripping mode: gripping, handling, lifting, turning

Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.

Robot

High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.

Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.

Low investment and quick return: one robot can realize single or multi-station loading and unloading.

Turret

Automatic lubrication

The automatic lubricator automatically delivers lubricant to the X- and Z-axis guide and screw to ensure smooth operation at all times.

In case of oil shortage, an alarm is issued and the machine stops automatically.
