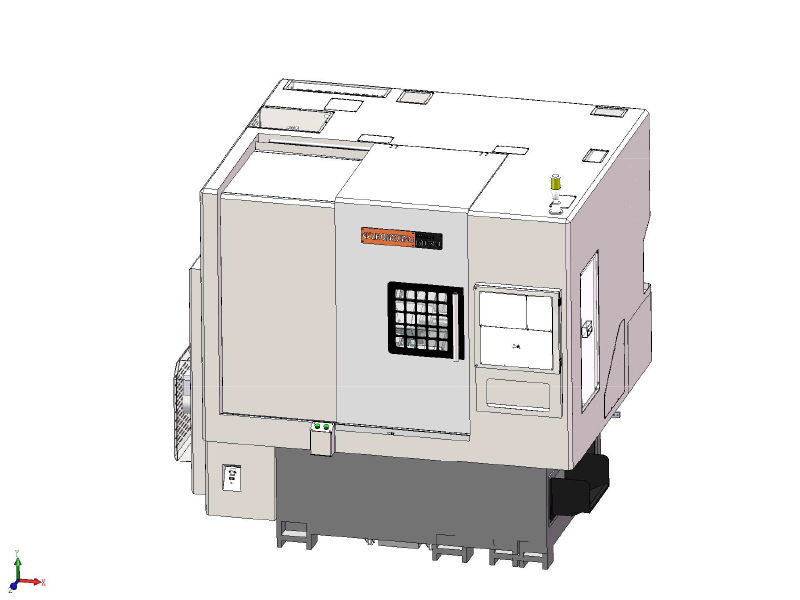

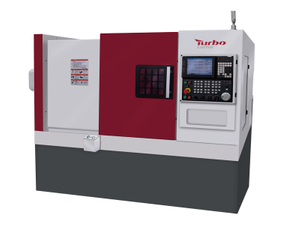

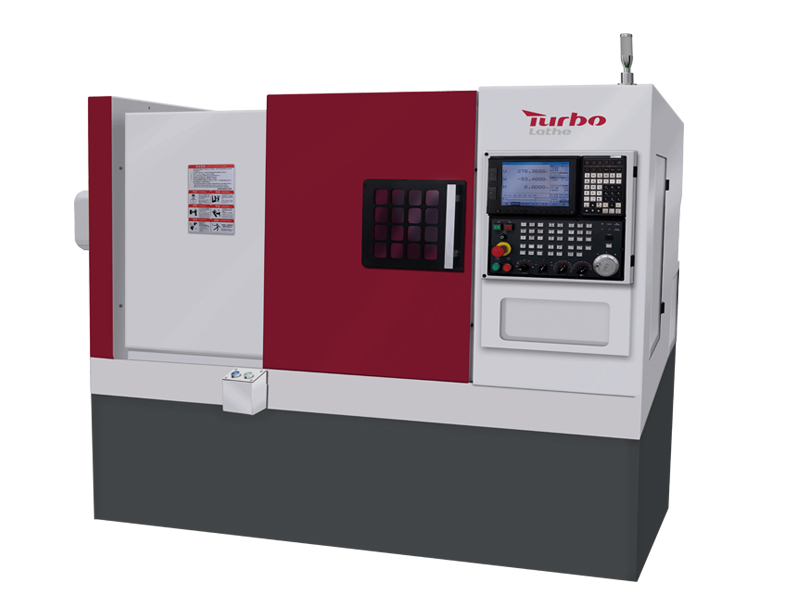

HTC500 Slant Bed CNC Lathe

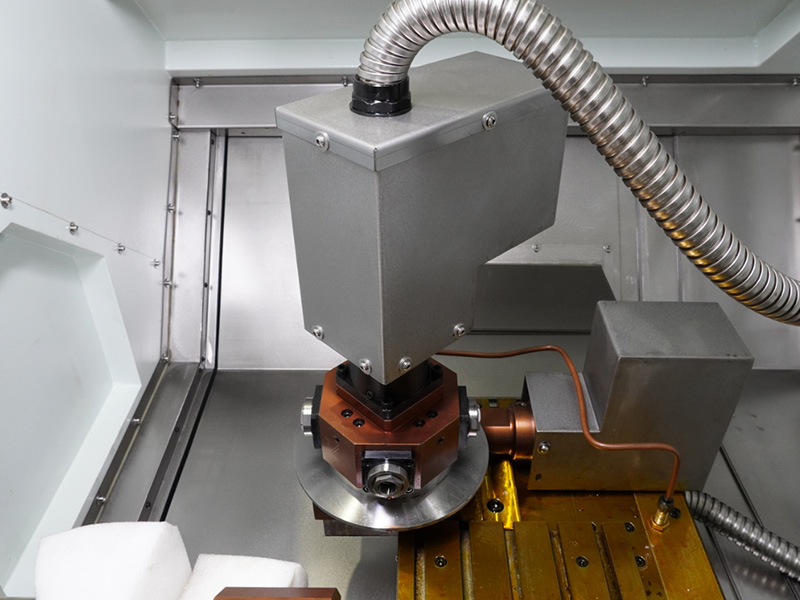

1. This product is the company's only one can be assembled with both power turret, but also inside the full protection, gang type slant-bed CNC lathe, the machine has both the advantages of the turret machine tool of multi-position, but also has a gang CNC lathe rigidity good, flexible with the advantages of the power head, with the optional 8-station servo turret with fly wheel, to achieve flying tool milling, or lifting power head of the power head to achieve the milling and turning, but also directly optional 12-station power turret, directly to achieve the milling and turning. The HTC500 CNC gang style lathe, with its excellent machining performance and flexibility, has been our hot-selling product for two consecutive years, and is popular in the Southeast Asian market.

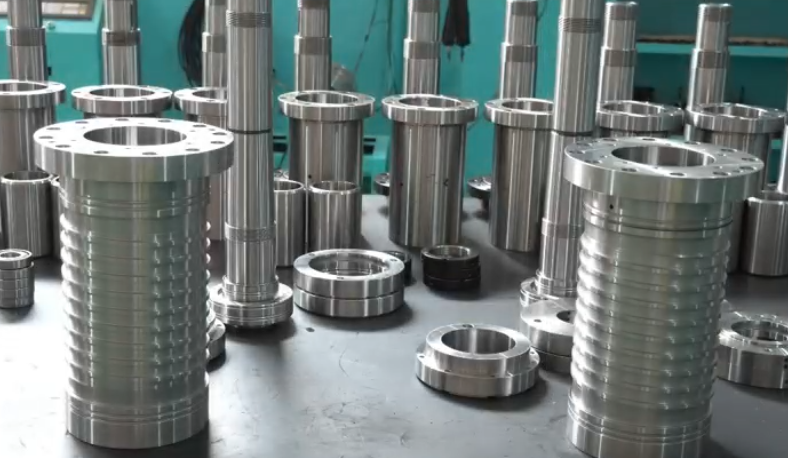

2. Adoption of A2-5 high-precision and high-rigidity servo-mechanical spindle structure, high-precision dynamic balancing. And the spindle through the spindle rigidity quantitative measurement, spindle thermal balance experiments, and dynamic accuracy experiments. The spindle has the advantages of high precision, high rigidity, good indexing and so on.

Application

● Precision parts

● Mechanical parts

● Hardware parts

● Hand tools

● Medical parts

● Clock & watch parts

● Optical parts

● Auto parts

● Bathroom parts

● Bike accessory

Automatic Parts Feeder

Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.

● Improve production efficiency

● Reduce production cost

● Improve production safety

Bar Catcher

Utilizes compressed air as a power source to achieve the splicing function.

● Realizes continuous machining

● Convenient workpiece handling and storage

Automatic Loading Truss

Gripping mode: gripping, handling, lifting, turning

Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.

Robot

High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.

Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.

Low investment and quick return: one robot can realize single or multi-station loading and unloading.

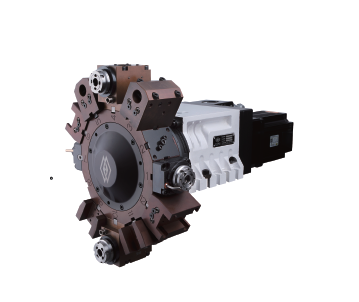

Turret

Automatic lubrication

The automatic lubricator automatically delivers lubricant to the X- and Z-axis guide and screw to ensure smooth operation at all times.

In case of oil shortage, an alarm is issued and the machine stops automatically.
