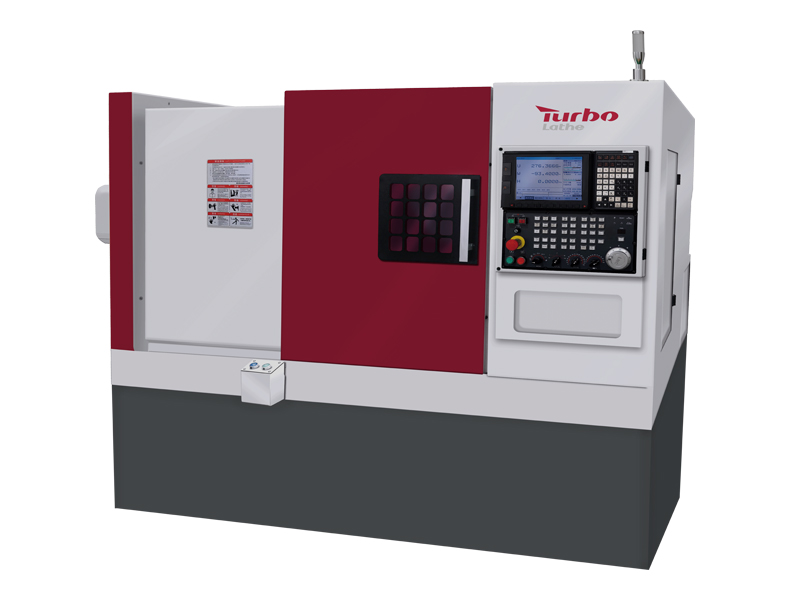

HTC350 Slant Bed CNC Lathe

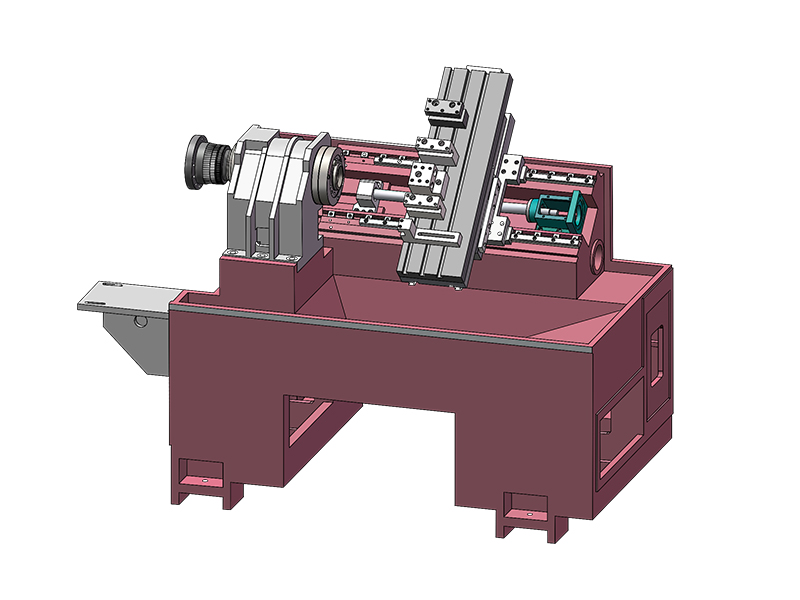

1. One-piece platform type extra wide base and 45°, slanted saddle design can ensure the stability of the machine tool for a long time.
2. Adopting HIWIN ball linear guideway, large span layout, stable structure, stronger rigidity of guideway support, suitable for high load cutting processing. The large pallet adopts triangular structure, strong deformation resistance and more stable structure.

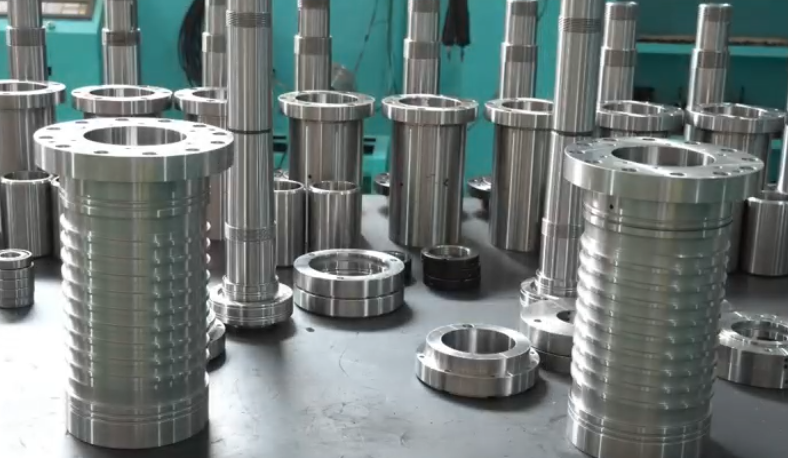

3. Adopt spindle unit, HIWIN/PMI ball screw, screw support LYC screw bearing, which can ensure the machining accuracy of long-term operation.
4. Optional tool presetter , bar feeder,part catcher, automatic chip conveyor (side chip conveyor or rear chip conveyor).
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi
Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory
Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety
Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage
Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.
Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.
Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet
Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws
Indexing Chuck
| Optional Configuration | ||
| CNC system | Syntec system 7TA |  |
| Syntec system 21TA | ||
| Turret | 8 Position turret |  |
| Chuck | 6" Solid chuck |  |
| 6" Hollow chuck | ||
| Motor | 5.5KW Main motor |  |
| 5.5KW Electro-spindle | ||

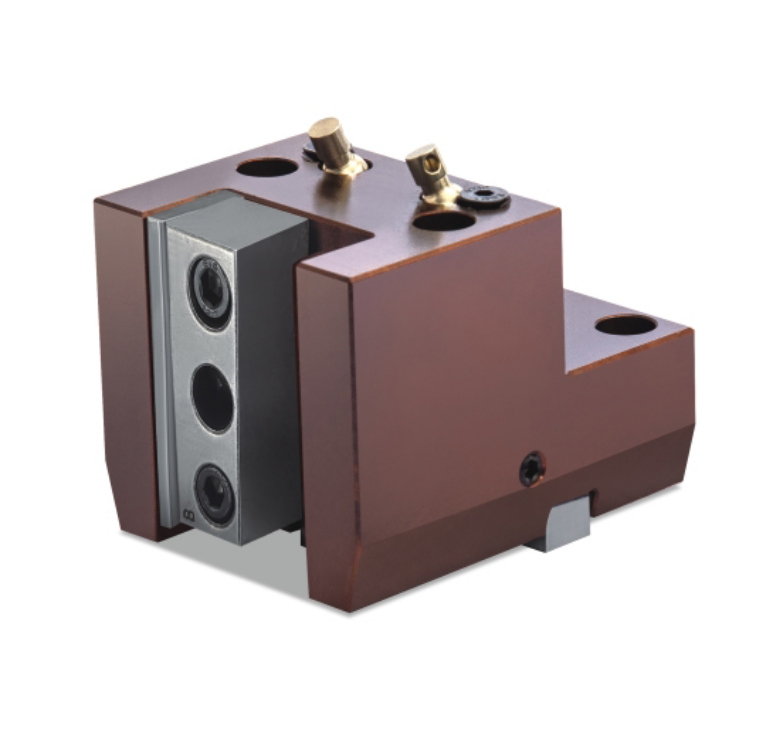

| Tool holder and power head | Square tool holder |  |
| Round tool holder | ||
| Fly wheel | ||
| Ball machine | ||
| Drive component | Hiwin ballscrew |  |
| Protection | Auto doors |  |
| Auto roof | ||
| Accuracy | Renishaw tool presetter |  |
| Coolant | 500w Cooling pump |  |
| Heat Exchanger | ||
| Cabinet Air Conditioner | ||
| Automation | Automatic loading truss |
|
| Robot | ||
| Bar feeder 3-20mm chain type ST-20 | ||
| Bar feeder 5-26mm automatic SV-26 | ||
| Bar feeder SQ-20 3-20mm oil film | ||
| Bar feeder SW-29 5-29mm oil film | ||
| Bar feeder SG-36 5-36mm oil film | ||
| Part catcher | ||
| Clean | Chip conveyor |  |
| Oil skimmer | ||
