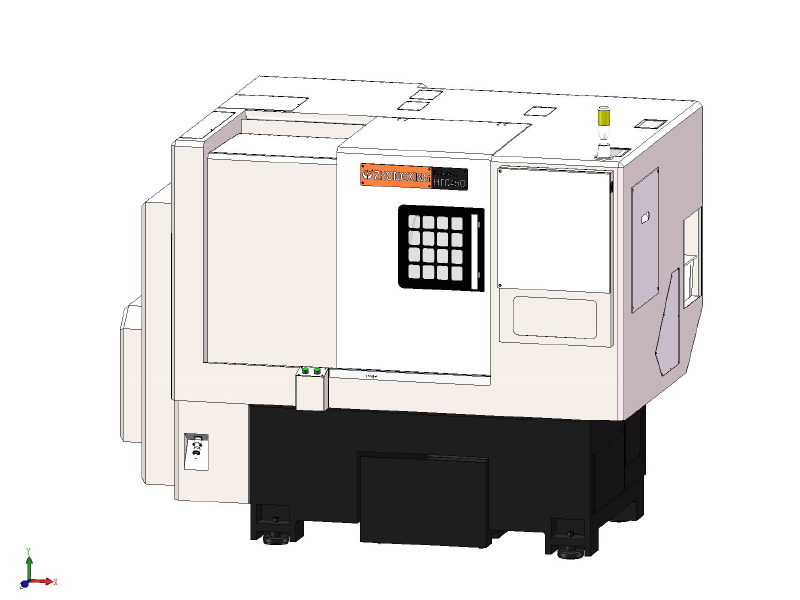

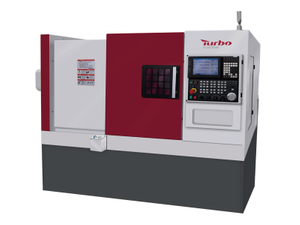

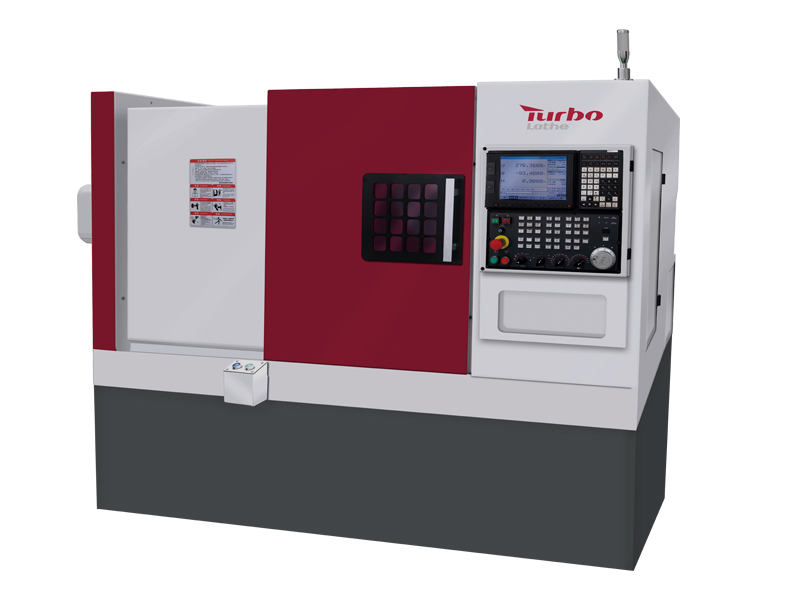

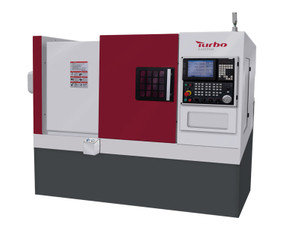

HTC450 Slant Bed CNC Lathe
1. High-quality casting base with annealed heat treatment provides strong support for high-speed and high-precision machining of HTC series CNC lathes.

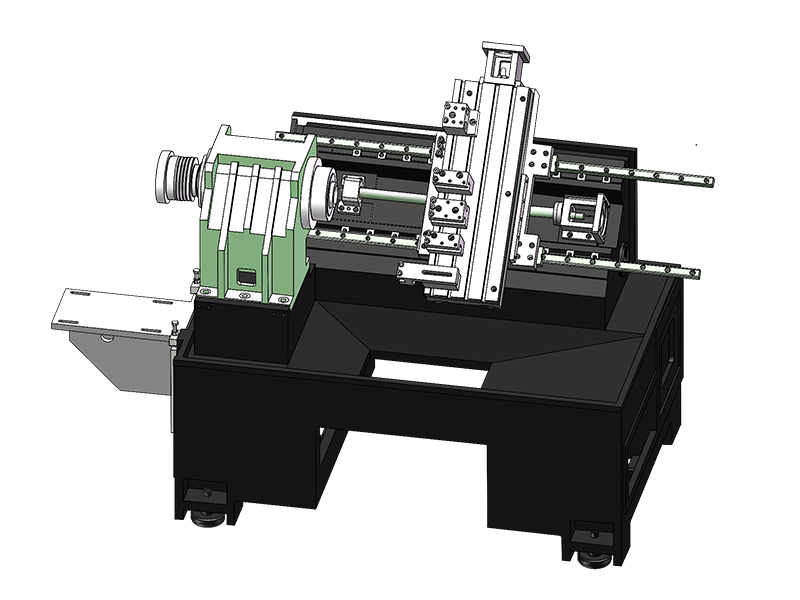

2. 45° slanting bed design with strong rigidity, can withstand high intensity cutting force, and easy to operate, easy to chip removal.
3. X/Z fast forward speed is more than 25m/min, such a high combination of fast forward speed and tool setting greatly improves productivity and achieves higher cutting speed with lower production cost.
4. High cost performance, we guarantee high quality - mass production, strict quality control.
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi
Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory

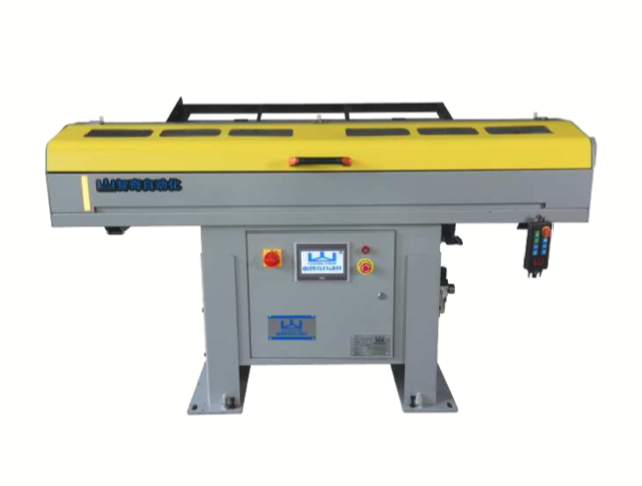

Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety
Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage
Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.
Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.
Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet
Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws
Indexing Chuck
| Optional configuration | ||
| CNC system | Syntec system 7TA |  |
| Syntec system 21TA | ||
| Fanuc system 2 axis Oi-TF-plus | ||
| Siemens system | ||
| Turret | 8 Position turret |  |
| 12 Position turret | ||
| Chuck | 6" Solid chuck |  |
| 6" Hollow chuck | ||
| 8" Solid chuck | ||
| 8" Hollow chuck | ||
| 7" Indexing chuck | ||
| 8" Indexing chuck | ||

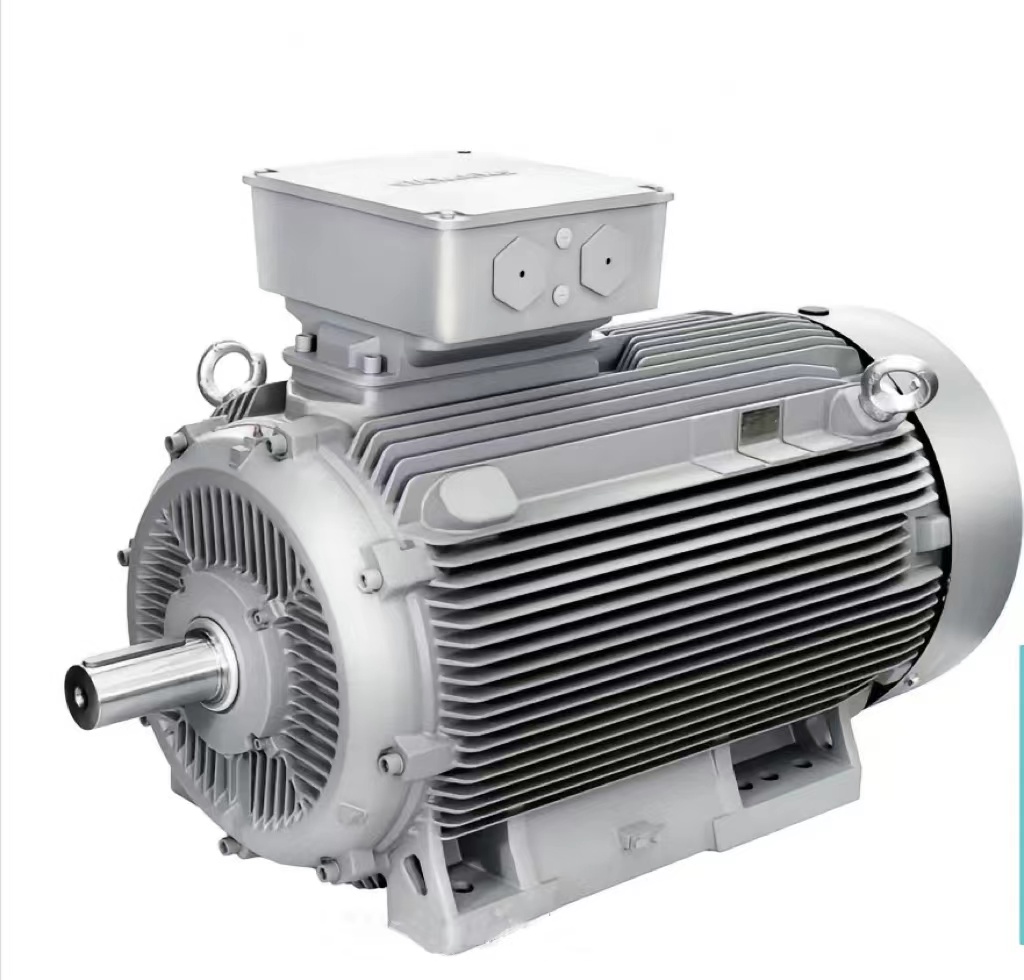

| Motor | 7.5KW Main motor |  |
| 5.5KW Electro-spindle | ||
| 7.5KW Electro-spindle | ||

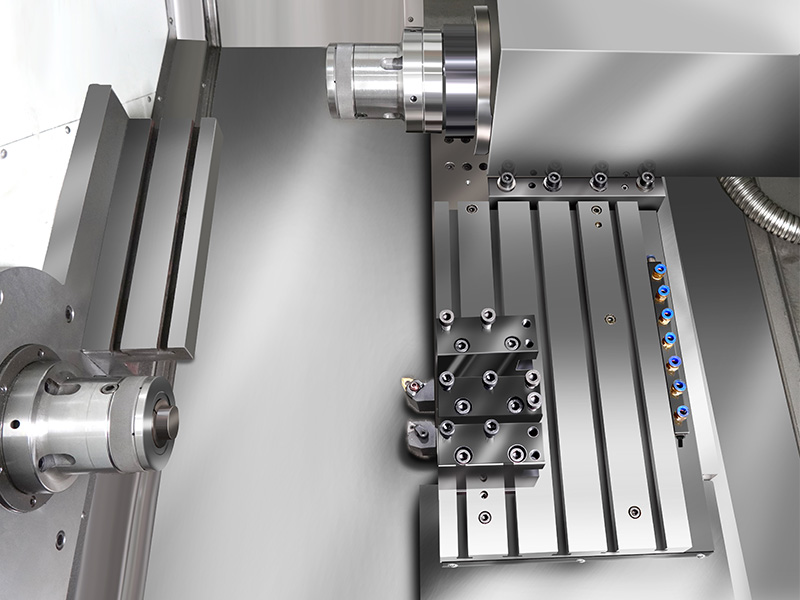

| Tool holder and power head | Square tool holder |  |
| Round tool holder | ||
| Hiwin ballscrew | ||
| Fly wheel | ||
| Ball machine | ||
| Protection | Auto door |  |
| Auto roof | ||
| Accuracy | Renishaw tool presetter |  |
| Automation | Automatic loading truss |  |
| Robot | ||
| Bar feeder 3-20mm chain type ST-20 | ||
| Bar feeder 5-26mm automatic SV-26 | ||
| Bar feeder SQ-20 3-20mm oil film | ||
| Bar feederSW-29 5-29mm oil film | ||
| Bar feeder SG-36 5-36mm oil film | ||
| Part catcher | ||
| Coolant and chip removal | 500w Cooling pump |  |
| Heat Exchanger | ||
| Cabinet Air Conditioner | ||
| Cleaner | Chip conveyor |  |
| Oil skimmer | ||
