HIGHLIGHTS
| Table size | 550×1000mm |
| Max Load on Table | 500kg |
| X travel | 800mm |
| Y travel | 550mm |
| Z travel | 550mm |
| Table to Spindle Nose Distance | 120-670mm |
| Spindle Center to Guideway Distance | 590mm |
| Spindle type | Direct/Belt |
| Spindle speed | 8000/10000/12000rpm |
| Main Motor Power | 7.5/11kW |
| X/Y/Z Rapid Speed | 36/36/36r/min |
| X/Y/Z Motor Power | ≥3/3/3(brake)kW |
| X/Y/Z Torque | 20/20/20(brake)N·m |
| X/Y/Z Feeding Speed | 1-10000mm/min |
| Machine Self Weight | 5500kg |
| T-slot width | 18mm |
| T-slot space | 100mm |
| T-slot numbers | 5 |
| X/Y/Z Rapid speed | ±0.005m/min |
| X/Y/Z Repeatability | ±0.003m/min |
| Machine Size LxWxH | 2760×2195×2745mm |
Fanuc 0i-MF Plus
AICC2
PMI/Hiwin Ballscrew
PMI/HIWIN Linear Guideway
BT40 8000/1000rpm
Belt drive
X/Y/Z 800/400/550mm
Table 1000x550mm
24 Tools ATC
7.5/11kW Kenturn Spindle
Chip Conveyor
Airgun
Coolant and recycle
Airtec air system
Fully protection cover
LED light
Safety Door
Seaworthy packing
1 Years Gurantee

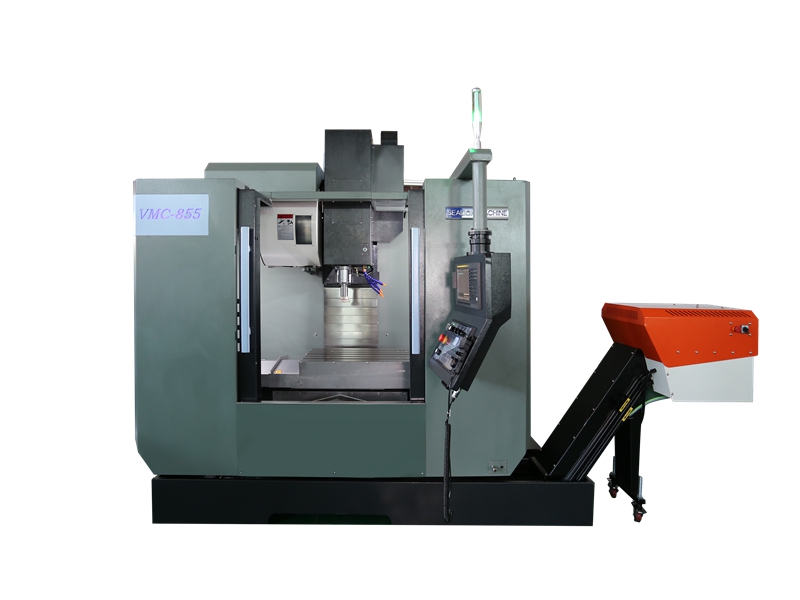

Fanuc Standard VMC855
Syntec system 22MA
Mitsubishi M80B
Mitsubishi M80A
Fanuc Manual-Guide-i
Belt Type CTS 2Mpa
Belt Type CTS 5Mpa
Belt Type CTS 7Mpa
BT40 10000/12000RPM Direct Drive
Direct Drive CTS 2Mpa
Direct Drive CTS 5Mpa
Direct Drive CTS 7Mpa
BT40 15000RPM α Motor
BT40 15000RPM α Motor CTS 3Mpa
Motorized Spindle 18000RPM
Motorized Spindle 18000RPM CTS 3Mpa
32 Tools ATC
40 Tools ATC
60 Tools ATC
Auto Door
Heidenhain Linear Scale XYZ
Mist Control
TS27R Renishaw Tool Presetter
Local Tool Presetter
OMP60 Renishaw Workpiece Measurement
Renishaw A-2066-0001 Edge Finding
TJR 170mm 4 Axis Table
TJR 200mm 4 Axis Table
TJR 250mm 4 Axis Table
TJR 320mm 4 Axis Table
