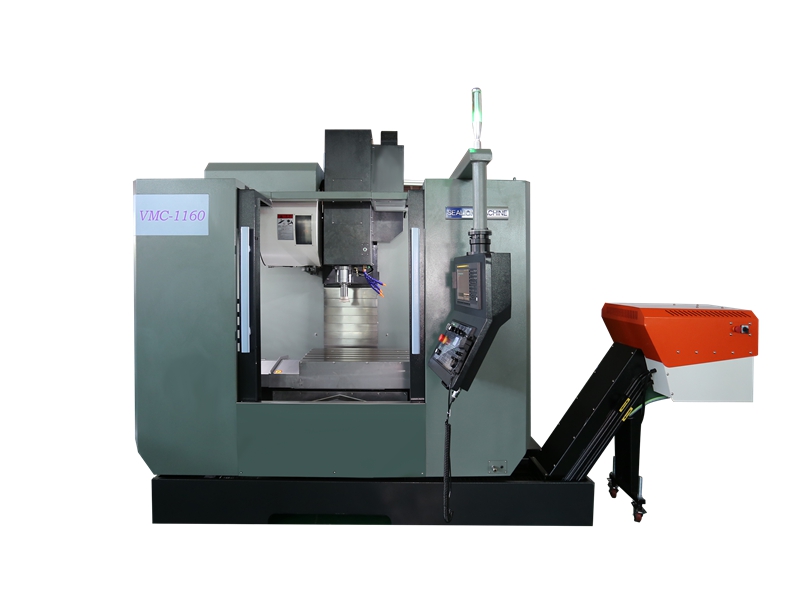

Home » CNC Machines » Machining Center » Vertical Machining Center » VMC1160 Vertical Machining Center
 |
loading
Share to:
HIGHLIGHTS
TECHNICAL DATA
STANDARD
OPTIONAL
HIGHLIGHTS
| Main specification | VMC1160 |
| Table | |
| Table size (mm) | 600×1200 |
| Max Load on Table (kg) | 800 |
| Processing range | |
| X travel (mm) | 1100 |
| Y travel (mm) | 600 |
| Z travel (mm) | 600 |
| Table to Spindle Nose Distance (mm) | 120-720 |
| Spindle Center to Guideway Distance (mm) | 650 |
| Spindle | |
| Spindle type | Direct/Belt |
| Spindle speed (rpm) | 8000/10000/12000 |
| Main Motor Power (kW) | "11/15 |
| X/Y/Z | |
| X/Y/Z Rapid Speed (r/min) | 36/36/36 |
| X/Y/Z Motor Power (kW) | ≥3/3/3(brake) |
| X/Y/Z Torque (N-m) | 20/20/20(brake) |
| X/Y/Z Feeding Speed (mm/min) | 1-10000 |
| Weight | |
| Machine Self Weight (kg) | 6500 |
| Accuracy | |
| Repeatability | ±0.003mm |
| Positioning | ±0.005mm |
| Power supply | |
| Power source | 3￠-AC 380V 50Hz±5% |
| Standard configuration | ||
| No. | Item | Supplier |
| 1. | CNC system | FANUC Oi-MMF Plus |
| 2. | Main motor | FANUC |
| 3. | X/Y/Z Servo motor | FANUC |
| 4. | X/Y/Z Ballscrew | PMI/HIWIN |
| 5. | Ballscrew bearing | NSK |
| 6. | X/Y/Z Guideway | PMI/HIWIN |
| 7. | Spindle | Kenturn |
| 8. | Synchronous Toothed Belt | UNITTA |
| 9. | AT'C System | OKADA/Detron |
| 10. | Work light | Standard |
| 11. | Spindle Taper Cleaning | Standard |
| 12. | Machine Fluid Washing System | Standard |
| 13. | Foundation pad &adjusting bolt | Standard |
| 14. | Centralized auto-feed lubrication system | Standard |
| 15. | Full protection of machine tool | Standard |
| 16. | 3 colors Light | Standard |
| 17. | A/C for electric cabinet | Standard |
| 18. | Electric Components | Schneider |
| 19. | Pneumatic System | SMC/FESTO |
Optional cofiguration
Syntec system 22MA
Mitsubishi M80B
Mitsubishi M80A
Fanuc Manual-Guide-i
Belt Type CTS 2Mpa
Belt Type CTS 5Mpa
Belt Type CTS 7Mpa
BT40 10000/12000RPM Direct Drive
Direct Drive CTS 2Mpa
Direct Drive CTS 5Mpa
Direct Drive CTS 7Mpa
BT40 15000RPM a Motor
BT40 15000RPM a Motor CTs 3Mpa
Motorized Spindle 18000RPM
Motorized Spindle 18000RPM CTS 3Mpa
32 Tools ATC
40 Tools ATC
60 TooIs ATC
Auto Door
Heidenhain Linear Scale XYZ
Mist Control
TS27R Renishaw Tool Presetter
Local Tool Presetter
OMP60 Renishaw Workpiece Measurement
Renishaw A-2066-0001 Edge Finding
TJR 170mm 4 Axis Table
TJR 200mm 4 Axis Table
TJR 250mm 4 Axis Table
TJR 320mm 4 Axis Table
