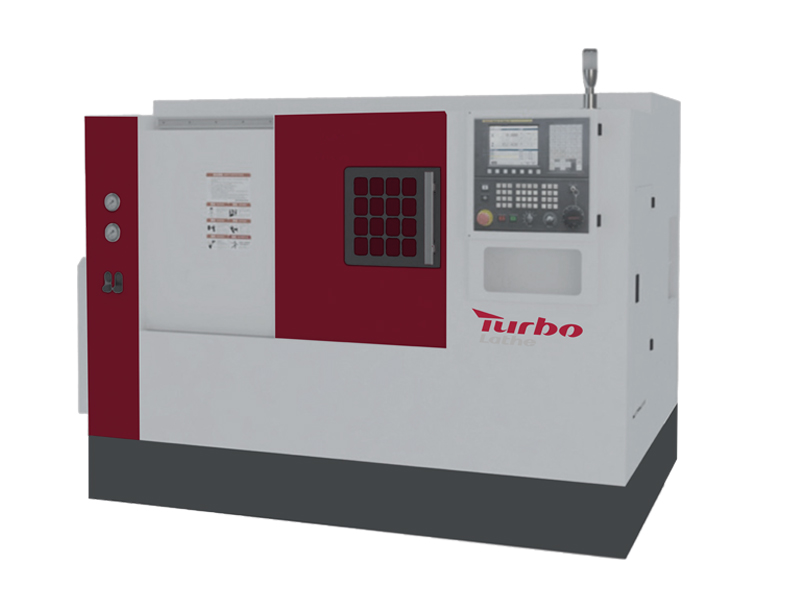

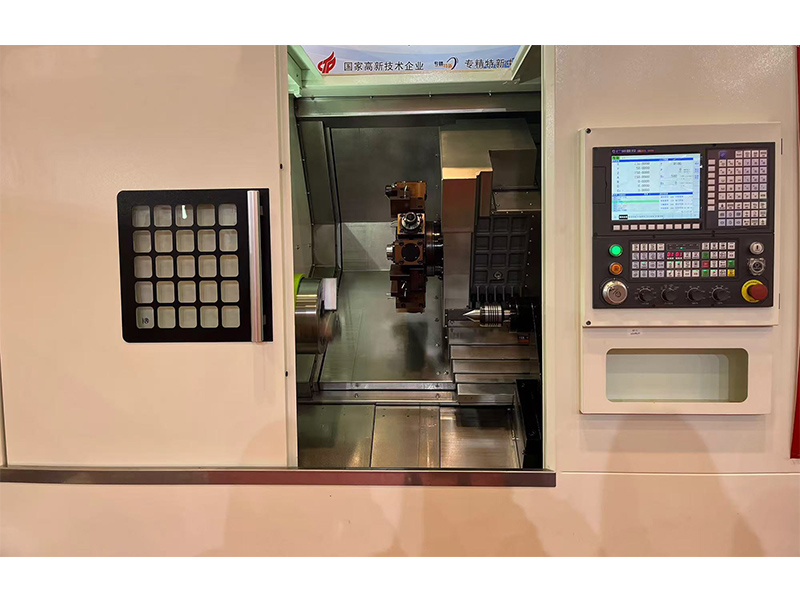

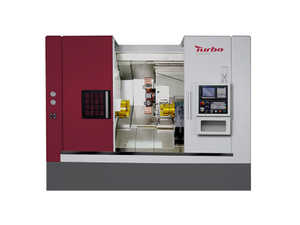

HTB50Y Double Spindle CNC Lathe
The HTB50Y is a cost-effective star product of our company, designed to meet the needs of efficient machining. In order to enhance the user's machining experience and productivity, we have equipped this model with a lifting power turret, which ensures fast and flexible tool change and realizes mill-turn combination. In addition, this model also adopts a high-performance electric spindle, characterized by high speed and high precision. At the same time, the HTB50Y is also equipped with a high rigidity MT#5 programmable tailstock, which supports precise positioning and automatic adjustment, making it more stable and reliable when machining long workpieces.

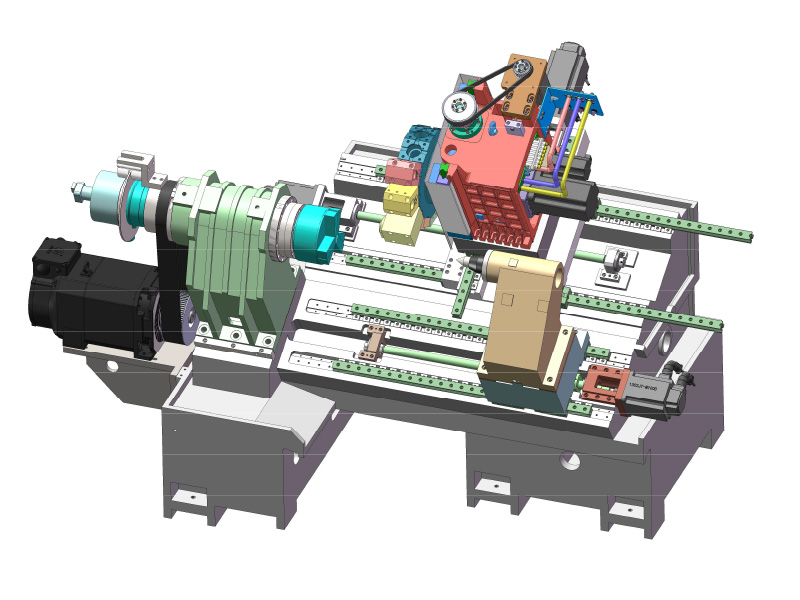

1. 45-degree slant bed structure design, all-inclusive internal protection.
2. lifting power turret, turning and milling compound, realize turning, milling and other multi-process integrated operation.
3. Equipped with high rigidity programmable hydraulic tailstock to ensure stable support and uniform force of workpiece during machining.
4. The core component of the machine tool adopts high precision electric spindle, which is characterized by high speed, high torque and low vibration.
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi
Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory
Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety
Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage
Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.
Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.
Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet
Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws

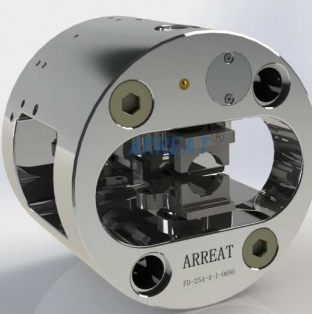

Indexing Chuck
| Optional configuration | ||
| CNC system | Syntec system 7TA |  |
| Syntec system 21TA | ||
| Syntec system 22TB | ||
| Fanuc system 0i-TF plus | ||
| Siemens system 828d | ||
| Fanuc system 0i-TF plus with C axis | ||
| Siemens system 828d with C axis | ||
| Chuck | 10" Solid chuck |  |
| 8" Indexing chuck | ||
| 10" Indexing chuck | ||
| Tool holder and power head | Square tool holder |  |

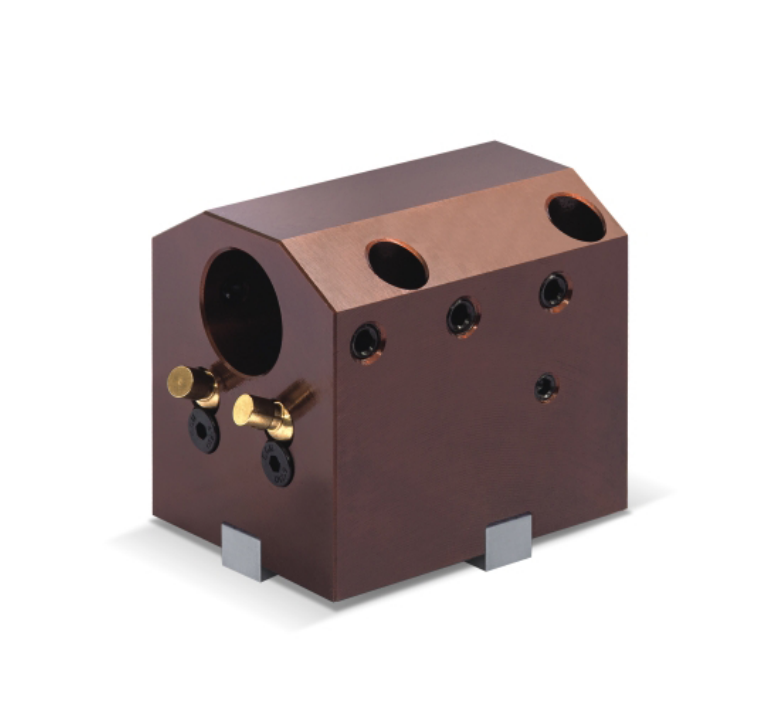

| Round tool holder | ||
| BMT55 0° power holder | ||
| BMT55 90° power holder | ||
| BMT40 0° power holder | ||
| BMT40 90° power holder | ||
| Protection | Auto door |  |
| Auto roof | ||
| Accuracy | Renishaw Tool Presetter |  |

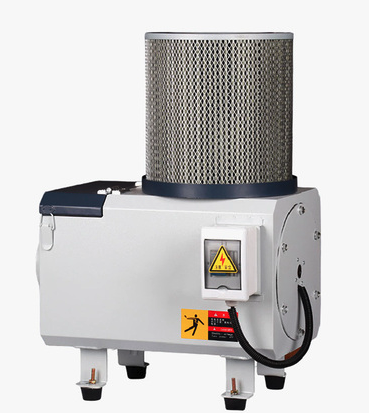

| Cleaner | Oil Skimmer |  |
| Coolant and chip removal | 500W Cooling pump |  |
| Chip Conveyor | ||
| Automation | Automatic Loading Truss |  |
| Robot | ||
| Bar Feeder 3-20mm Chain Type ST-20 | ||
| Bar Feeder 5-26mm Automatic SV-26 | ||
| Bar Feeder SQ-20 3-20mm Oil Film | ||
| Bar Feeder SW-29 5-29mm Oil Film | ||
| Bar Feeder SG-36 5-36mm Oil Film | ||
| Bar Feeder SD-51 5-50mm Oil Film | ||
| Bar Feeder SH55 8-55mm | ||
| Bar Feeder SH56 8-65mm | ||
| Part catcher | ||
