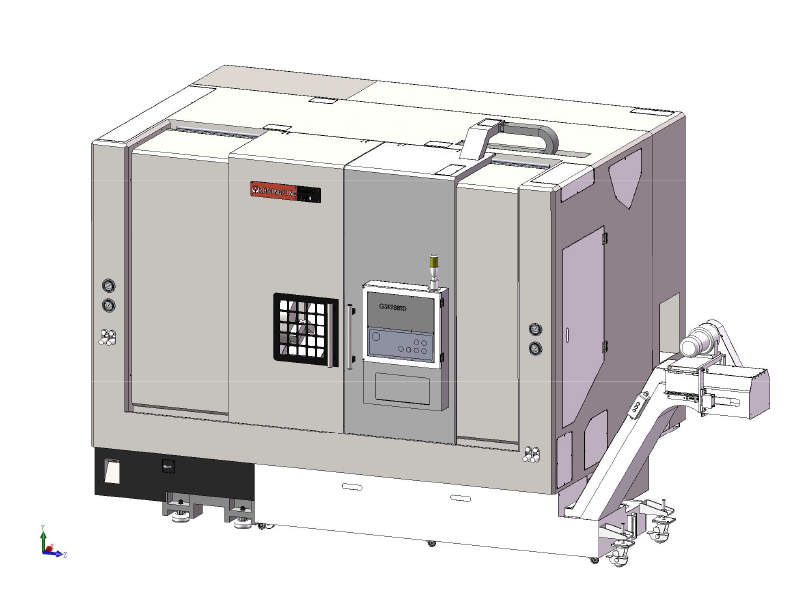

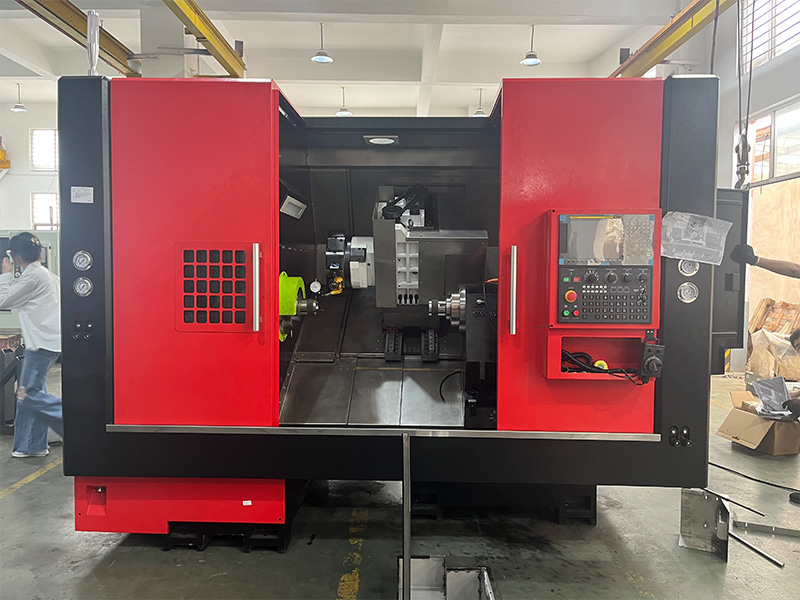

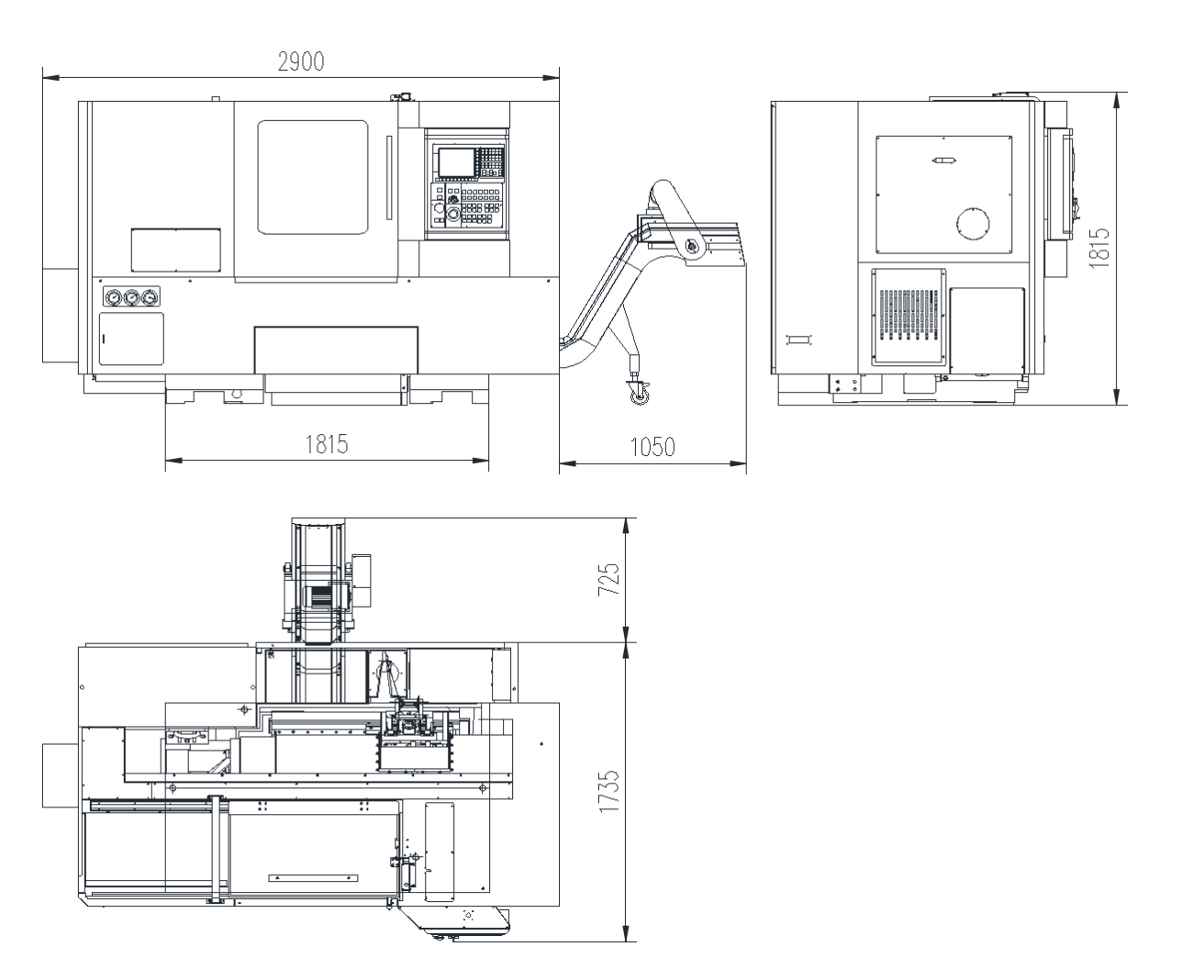

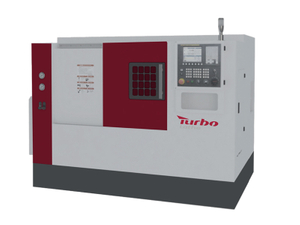

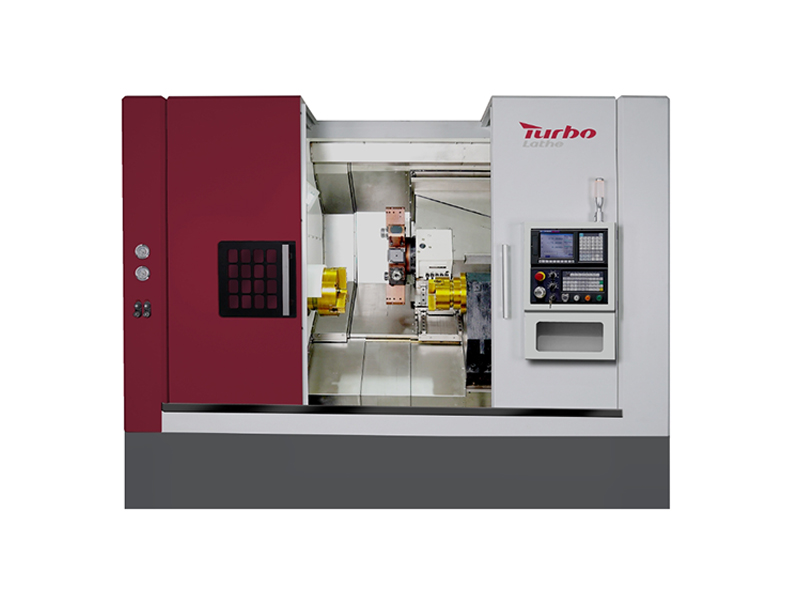

G500 Double Spindle CNC Lathe

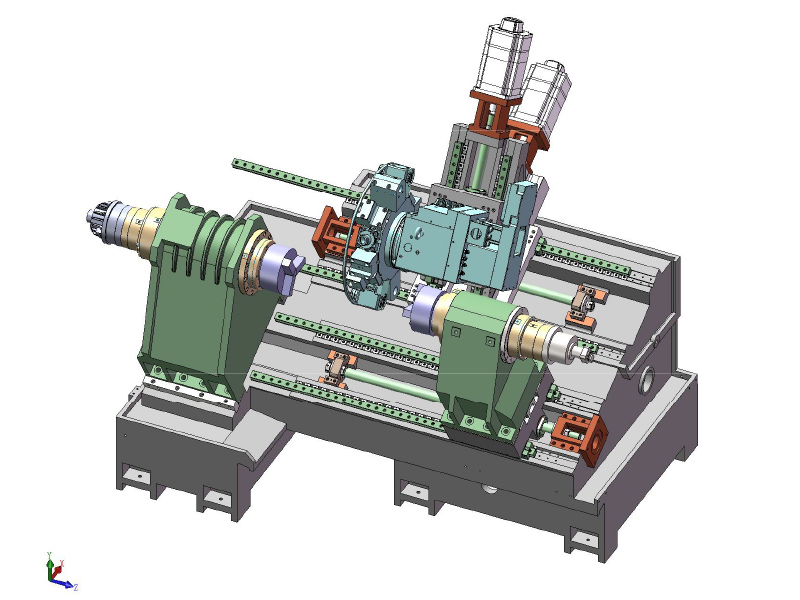

Machine bed: As the bed adopts integral casting molding, the bed guide rail 30°+30° inclined layout, with a large bearing cross-section, so there is good rigidity and vibration absorption, the design of high and low guide rails can ensure high-precision cutting machining. Avoid the use of special fixtures, better to eliminate the processing errors caused by the secondary clamping, no need to repeat the positioning, machining accuracy, rigidity enhancement. Shorten the production cycle and reduce the cost.
Main drive system: the spindle is an electric spindle, which eliminates the external force of the belt link, makes the spindle run more smoothly, reduces the vibration and noise caused by the belt drive, and improves the machining quality. Suitable for low-speed power turning and high-speed finishing requirements, equipped with brake disk and encoder, can be used through the servo device for precise control of the spindle operation, to realize the quasi stop, emergency stop function. It can realize “zero transmission”, faster and more accurate speed control and angular positioning, and can realize highly accurate linkage machining.
Feeding system: The machine tool adopts ball screw and linear rolling guideway, which has high transmission efficiency and good accuracy retention, making the machine tool holder move quickly and stably with high positioning accuracy.
X, Z guide rail adopts linear guide rail form, guide rail friction coefficient is low to ensure the high positioning accuracy of X, Z guide rail of the machine tool, X, Z ball screw selection after many times of precise calculation and repeated calibration, to ensure high positioning accuracy and repeatable positioning accuracy.

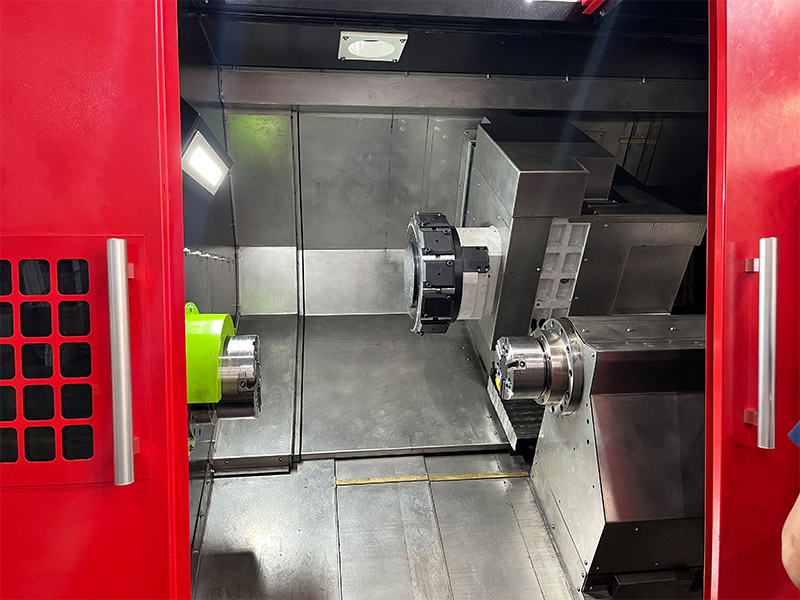

Turret: Adopt high rigidity hydraulic turret designed and developed independently, which has high reliability and repeatable positioning accuracy.

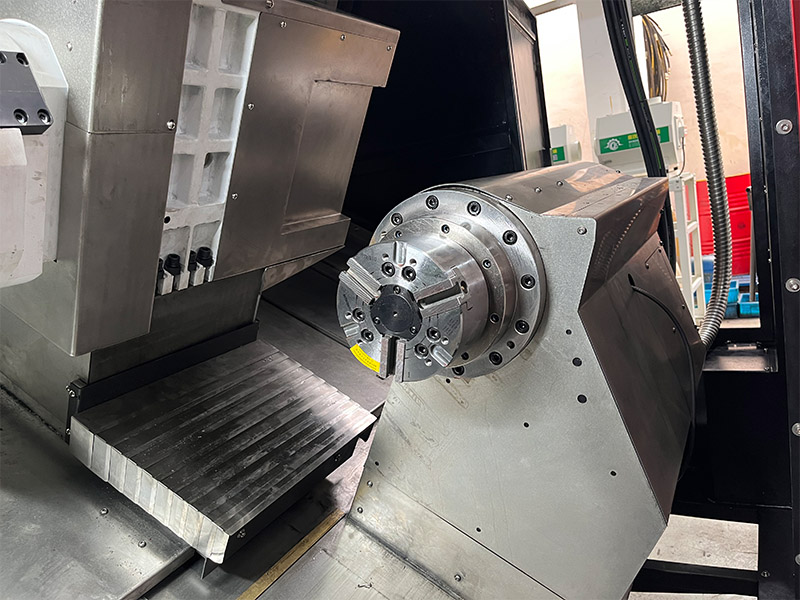

Sub-spindle: The sub-spindle is an electric spindle, which eliminates the external force of the belt link, makes the spindle run more smoothly, reduces the vibration and noise caused by the belt drive, and improves the machining quality. Suitable for low-speed powerful turning and high-speed finishing requirements, equipped with brake disk and encoder.
1. Turning and milling composite CNC lathe at the same time can realize, turning, grinding, milling, drilling, tapping, hobbing, slotting, and so on, to achieve the core functions of turning and milling center.
2. The base of the model adopts the whole casting structure, the base does not add water machine weight of 6 tons or more, to ensure that the machine tool is used for a long time without deformation, high rigidity, high stability.
3. servo-powered turret: increase the long stroke Y-axis carrying tooling more abundant, more powerful, more convenient application, turret can be extended to a tool holder can be installed 4 tools, double out of the power milling head, greatly improving the number of turning and milling cutter
4. Program-controlled tailstock function can comprehensively solve the accuracy problem of long shaft machining.
5. Adopting Taiwan Shangyin or Yintai roller guideway, the screw adopts Shangyin or Yintai OD φ40MM precision grade screw, which makes the rigidity and precision of the machine tool to be more up to a level.
CNC Control System Brand
GSK988TA is Standard
Optional:
HNC-808D-10G
Syntec 22TA
FANUC 0i-TF plus
Siemens 828d
Mitsubishi
Application
● Precision parts
● Mechanical parts
● Hardware parts
● Hand tools
● Medical parts
● Clock & watch parts
● Optical parts
● Auto parts
● Bathroom parts
● Bike accessory
Automatic Parts Feeder
Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.
● Improve production efficiency
● Reduce production cost
● Improve production safety
Bar Catcher
Utilizes compressed air as a power source to achieve the splicing function.
● Realizes continuous machining
● Convenient workpiece handling and storage
Automatic Loading Truss
Gripping mode: gripping, handling, lifting, turning
Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.
Robot
High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.
Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.
Low investment and quick return: one robot can realize single or multi-station loading and unloading.
Turret
The power cutter disc indexing adopts servo cutter disc.
Can cut in forward and reverse directions.
Two-way nearby tool change, fast speed and high efficiency.
High positioning accuracy and high repeat positioning accuracy.
High rigidity and good stability
8 T Servo Turret
12T Power Turret
12T Power Turret With Y Axis
Clamping
Collet

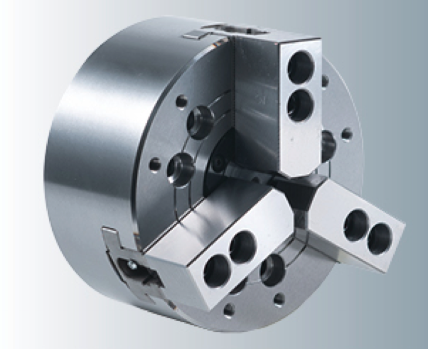

Chuck
Size: 6"， 8"， 10"， 12"， 15"
Type: solid/ hollow
Jaw: 2/3/4Jaws
Indexing Chuck
| Optional configuration | ||
| CNC system | Syntec system 7TA |  |
| Syntec system 21TA | ||
| Syntec system 22TB | ||
| Fanuc system 0i-TF plus | ||
| Siemens system 828d | ||
| Fanuc system 0i-TF plus with C axis | ||
| Siemens system 828d with C axis | ||
| Chuck | 10" Solid chuck |  |

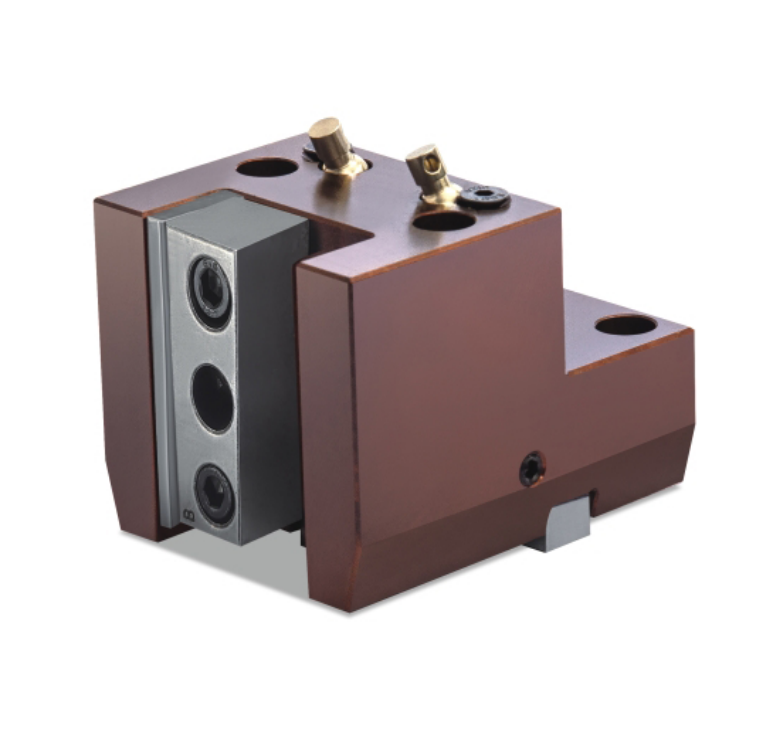

| Tool holder and power head | Square tool holder |  |
| Round tool holder | ||
| BMT55 0° power holder | ||
| BMT55 90° power holder | ||
| BMT40 0° power holder | ||
| BMT40 90° power holder | ||
| Protection | Auto door |  |
| Auto roof | ||
| Accuracy | Renishaw Tool Presetter |  |

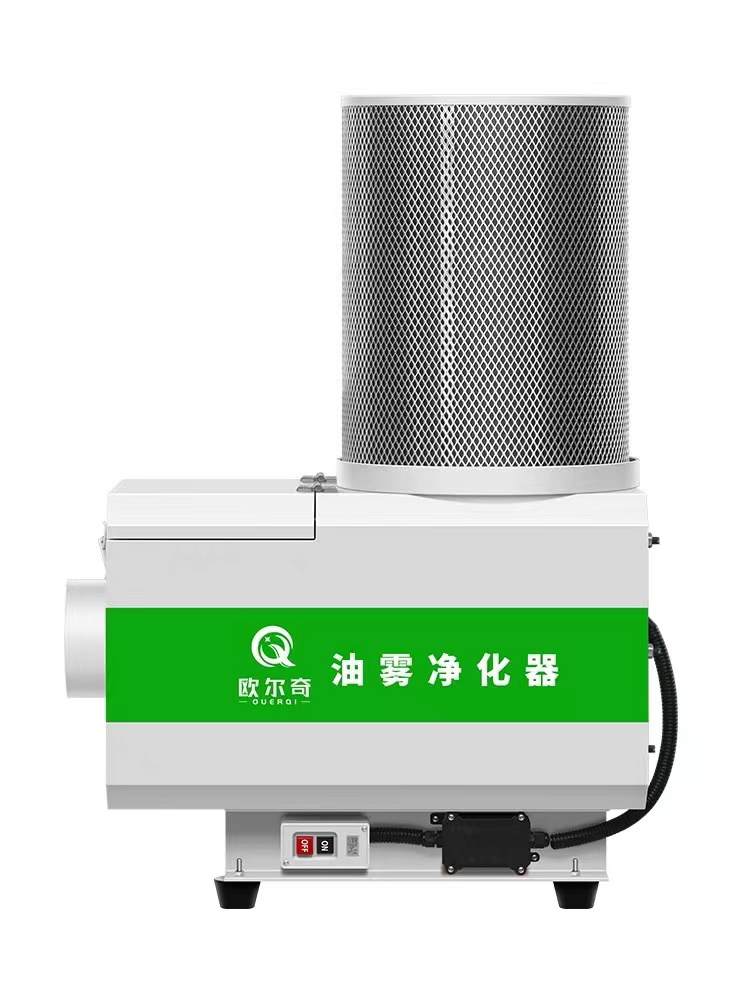

| Cleaner | Oil Skimmer |  |
| Coolant and chip removal | 500W Cooling pump |  |
| Chip Conveyor | ||
| Automation | Automatic Loading Truss |
|
| Robot | ||
| Bar Feeder 3-20mm Chain Type ST-20 | ||
| Bar Feeder 5-26mm Automatic SV-26 | ||
| Bar Feeder SQ-20 3-20mm Oil Film | ||
| Bar Feeder SW-29 5-29mm Oil Film | ||
| Bar Feeder SG-36 5-36mm Oil Film | ||
| Bar Feeder SD-51 5-50mm Oil Film | ||
| Part catcher | ||
