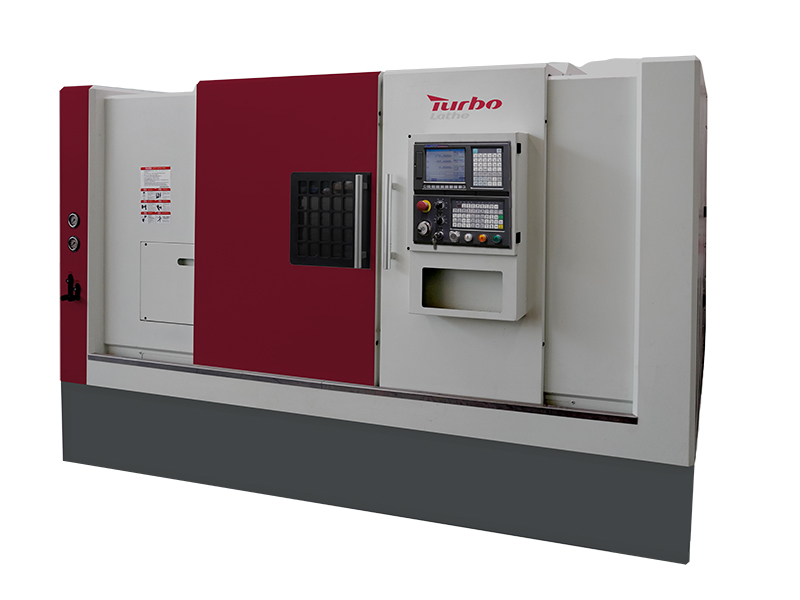

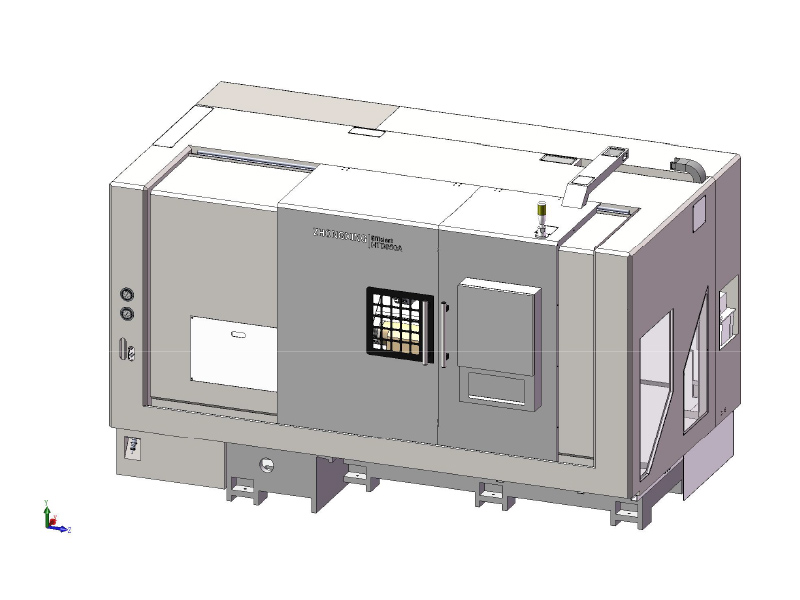

HTB650A Slant Bed CNC Lathe

HTB650A CNC Cutting, Milling And Turning Function Machine Tool

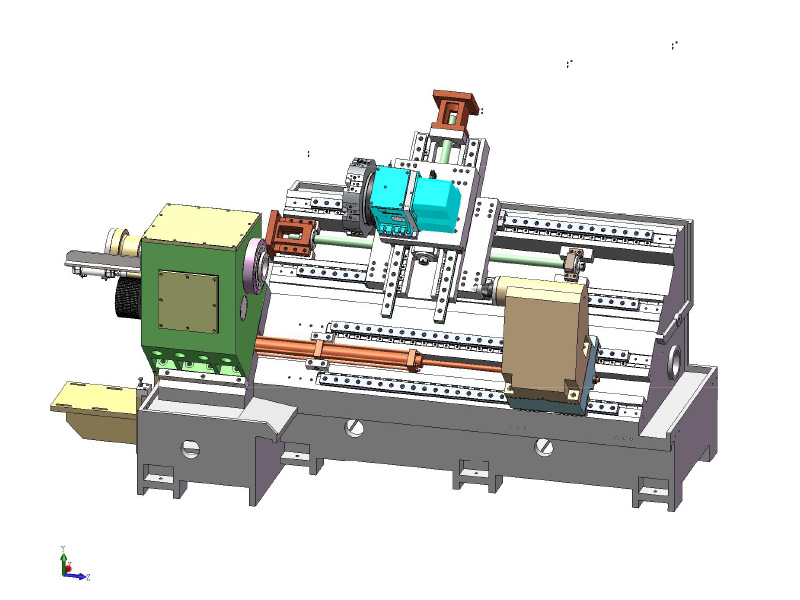

Stepped integral body through finite element analysis, high-low flat guide rail + largespan high rigid saddle, can share cutting force and prolong the life of guide rail. Largespan tailstock guide rail ensures high speed and heavy cutting. Built-in electric spindle (optional): built-in high-speed motor direct drive, p4bearing support, oil brake, compact structure, high speed, low vibration, low noisecan respond to high speed, high precision, high rigidity cutting requirements. 8 or 12-station intemal discharge high-pressure servo turret (optional): three-pieceend gear disc, servo motor drive , oil pressure automatic locking, high repeat positioningaccuracy, fast tool change speed, suitable for heavy cutting. The pump does not needto start or stop when changing tools under high pressure water outlet, and there is noleakage of cutting fluid.

Availability:



Inquire

HIGHLIGHTS

TECHNICAL DATA

STANDARD

OPTIONAL

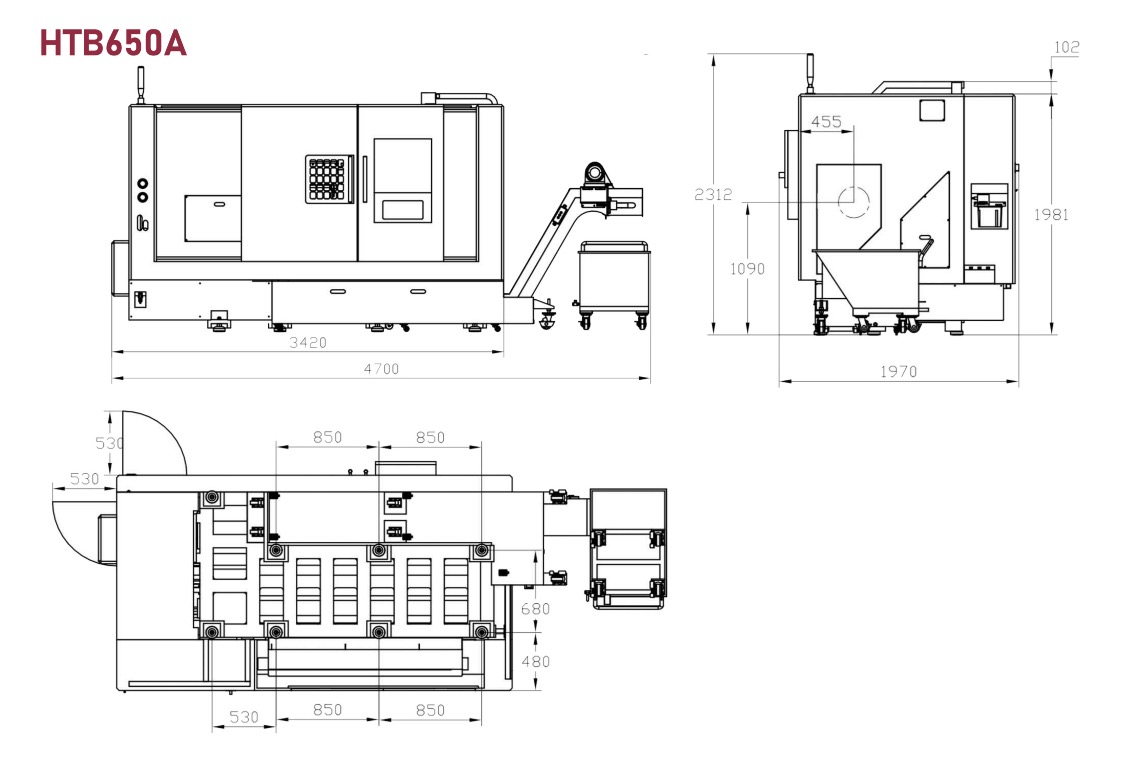

MACHINE LAYOUT

1. Flat bed/45 degree overall inclined bed

2. High precision Taiwan guide rail

3. Large and convenient chip removal

4. Spindle units are divided into two types: heavy cutting type and high speed.

5. heavy-duty spindle unit is suitable for bearing and gear machining.

6. High-speed spindle units are suitable for high-speed and high-precision machining.

7. pre-tensioned screw structure

8. Optional power turret

CNC Control System Brand

GSK988TA is Standard

Optional:

HNC-808D-10G

Syntec 22TA

FANUC 0i-TF plus

Siemens 828d

Mitsubishi

Application

● Precision parts

● Mechanical parts

● Hardware parts

● Hand tools

● Medical parts

● Clock & watch parts

● Optical parts

● Auto parts

● Bathroom parts

● Bike accessory

Automatic Parts Feeder

Adopting hydraulic system drive, the feeding force is large, suitable for larger diameter and heavier bar material feeding. It has the advantages of good stability and high reliability.

● Improve production efficiency

● Reduce production cost

● Improve production safety

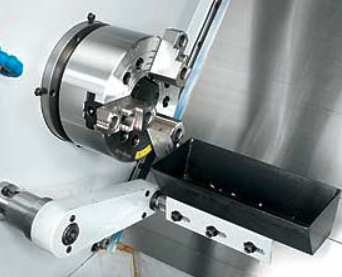

Bar Catcher

Utilizes compressed air as a power source to achieve the splicing function.

● Realizes continuous machining

● Convenient workpiece handling and storage

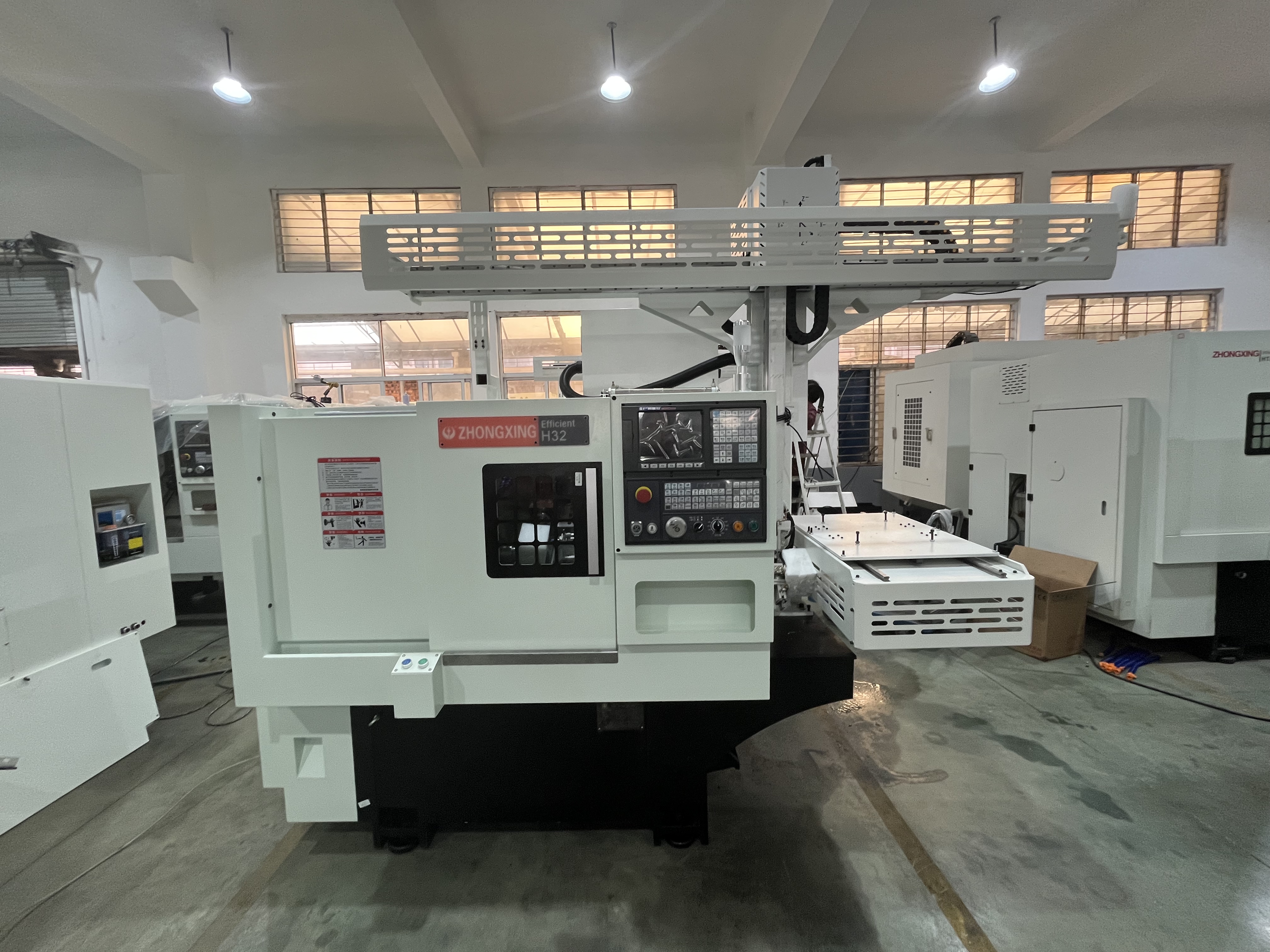

Automatic Loading Truss

Gripping mode: gripping, handling, lifting, turning

Suitable for:Hardware fittings, plastic parts, 3C electronic parts, automobile parts, electronic and electrical parts, furniture and home appliance parts.

Robot

High precision and high beat rate: with a repeatability of ±0.02 mm and a maximum beat rate of 4 m/s, the robot can efficiently transport parts, increasing productivity by 20% - 40% in machine tool loading and unloading.

Robot loading and unloading: a production line, a single investment can meet the needs of multi-variety production.

Low investment and quick return: one robot can realize single or multi-station loading and unloading.

Turret

The power cutter disc indexing adopts servo cutter disc.

Can cut in forward and reverse directions.

Two-way nearby tool change, fast speed and high efficiency.

High positioning accuracy and high repeat positioning accuracy.

High rigidity and good stability

8 T Servo Turret

12T Power Turret

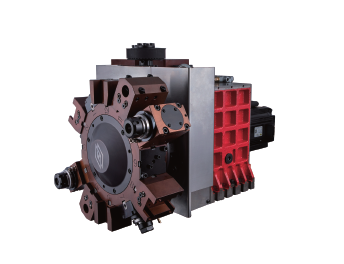

12T Power Turret With Y Axis

Automatic lubrication

The automatic lubricator automatically delivers lubricant to the X- and Z-axis guide and screw to ensure smooth operation at all times.

In case of oil shortage, an alarm is issued and the machine stops automatically.

Clamping

Collet

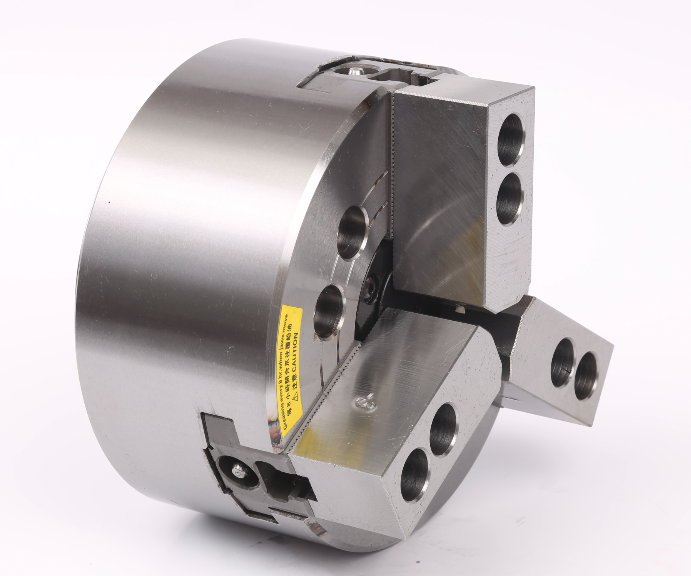

Chuck

Size: 6"， 8"， 10"， 12"， 15"

Type: solid/ hollow

Jaw: 2/3/4Jaws

Indexing Chuck

NO.	Main technical parameters	HTB650
1	Max swing diameter on the bed	Φ620mm
2	Max disk workpieces diameter	Φ500mm
3	Max shaft workpieces diameter	Φ380mm
4	Maximum workpiece length	820mm
5	X/Z axis travel	320mm/800mm
6	Spindle head type	A2-8
7	Spindle maximum speed	2000r/min
8	Hydraulic chuck type	12” hollow 3 jaw chuck
9	Spindle bore	Φ85mm
10	Bar capicity	Φ75mm
11	Tailstock sleeve diameter	8/12 position
12	Tailstock sleeve stroke	≤0.005
13	Tailstock shaft taper hole	≤20
14	Turret	≤20
15	X/Z axis repeat positioning	Φ90mm
16	X axis fast rapid speed	150mm
17	Z axis fast rapid speed	MT5
18	Main motor power	11kw
19	Machine tool size (length x width x height) mm	378019002080

GSK/HNC System

8 station servo turret,

A2-8 Spindle(Max spindle A2-11),

12"hollow chuck,

Hiwin ballscrew,

Hiwin linear guideway,

hydraulic tailstock MT5#,

Chip conveyor,

Protection cover,

Coolant and recycle,

370W Cooling pump power,

11KW main motor power.

Optional configuration
CNC system	Syntec system 7TA
	Syntec system 21TA
	Syntec system 22TB
	Fanuc system 0i-TF plus
	Siemens system 828d
	Fanuc system 0i-TF plus with C axis
	Siemens system 828d with C axis
Turret	12 position turret
	12 position power turret
	Y axis
Chuck	12'' solid chuck
	12'' hollow chuck
	15'' solid chuck
	15'' hollow chuck
	12'' indexing chuck
	15'' indexing chuck

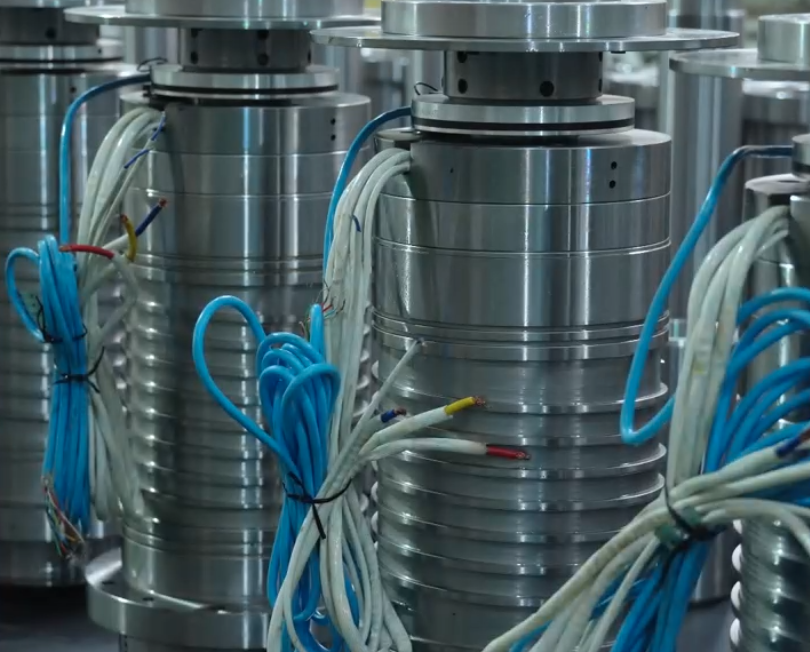

Motor	11KW Electro-spindle
Motor	15KW Electro-spindle
Tool holder and power head	Square tool holder
	Round tool holder
	BMT55 0° power holder

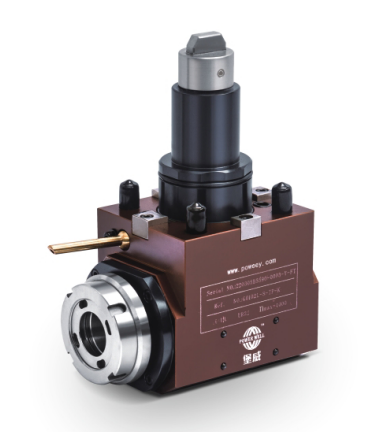

	BMT55 90° power holder
	BMT40 0° power holder
	BMT40 90° power holder
Protection	Auto door
Protection	Auto roof
Accuracy	Renishaw Tool Presetter

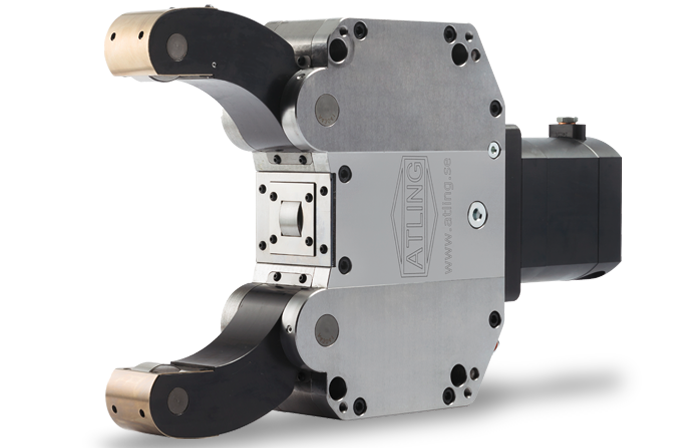

Support	Local steady rest(20-150mm)
Support	SMC steady rest(20-150mm)
Automation	Automatic Loading Truss
	Robot
	Bar Feeder 3-20mm Chain Type ST-20
	Bar Feeder 5-26mm Automatic SV-26
	Bar Feeder SQ-20 3-20mm Oil Film
	Bar Feeder SW-29 5-29mm Oil Film
	Bar Feeder SG-36 5-36mm Oil Film
	Bar Feeder SD-51 5-50mm Oil Film
	Bar Feeder SH55 8-55mm
	Bar Feeder SE65 8-65mm
	Bar Feeder SE80 12-80mm
	500W Cooling pump
	Part catcher

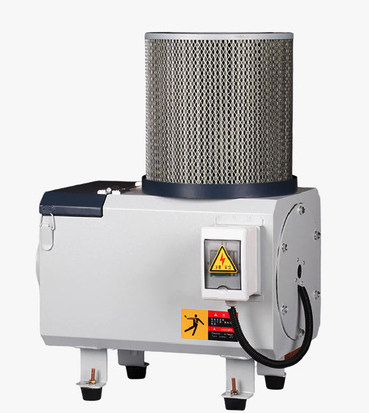

Cleaner	Oil Skimmer
